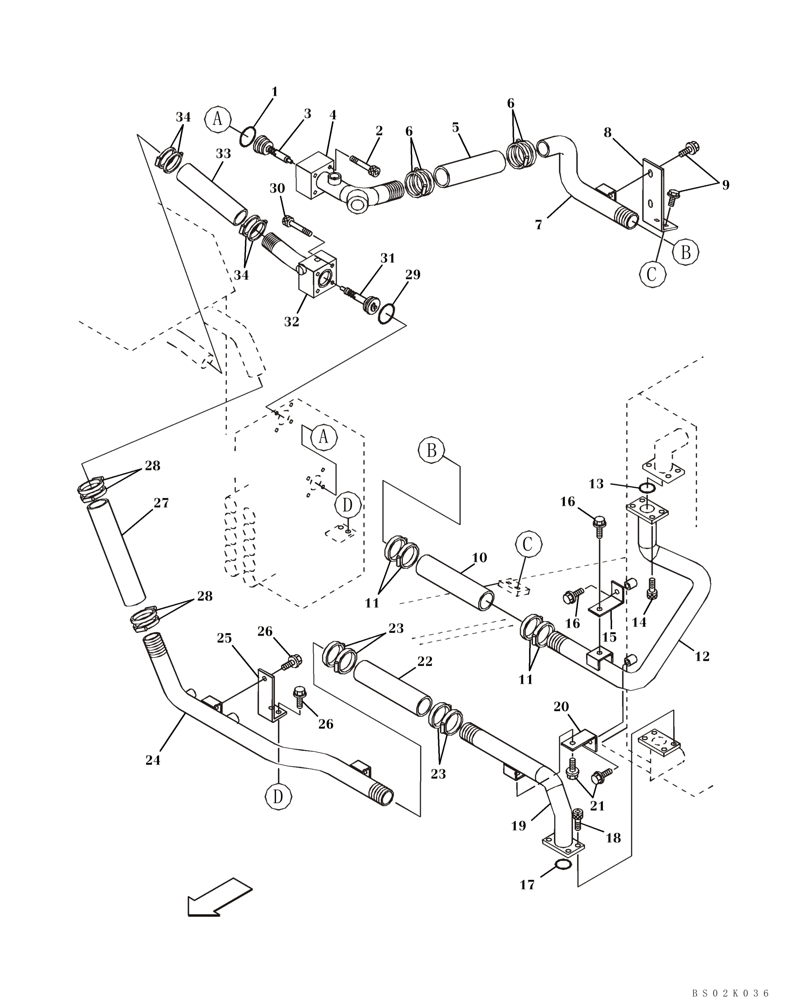

Запчасти Case CX330 (08-05) - HYDRAULICS - RESERVOIR RETURN (08) - HYDRAULICS

1

154641A1

O-RING

1шт.

2

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

3

KRJ6992

CHECK VALVE

Replaces 163417A1

1шт.

4

KSJ2898

TUBE ASSY.,41.6 mm ID x 48.6 mm OD

1шт.

5

KHJ1792

HOSE

1шт.

6

165793A1

COLLAR

4шт.

7

KSJ2705

HYD TUBE,41.6 mm ID x 48.6 mm OD

1шт.

8

KSJ2706

BRACKET

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

10

KHJ1792

HOSE

1шт.

11

150890A1

CLIP,ELECTRICAL

4шт.

12

KSJ2849

TUBE ASSY.

1шт.

13

154609A1

O-RING

1шт.

14

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

15

KTJ2089

BRACKET

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

17

154609A1

O-RING

1шт.

18

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

19

KSJ2850

TUBE ASSY.

1шт.

20

KTJ2089

BRACKET

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

22

KHJ1792

HOSE

1шт.

23

165793A1

COLLAR

4шт.

24

KSJ2816

HYD TUBE,41.6 mm ID x 48.6 mm OD

1шт.

25

KSJ2708

BRACKET

1шт.

26

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

27

162348A1

HOSE,48.5mm ID x 310mm L

1шт.

28

165793A1

COLLAR

4шт.

29

154641A1

O-RING

1шт.

30

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

31

159054A1

VALVE

Check

1шт.

32

KSJ2892

TUBE ASSY.,35.7 mm ID x 42.7 mm OD

1шт.

33

152788A1

HYDRAULIC HOSE

1шт.

34

165793A1

COLLAR

4шт.
