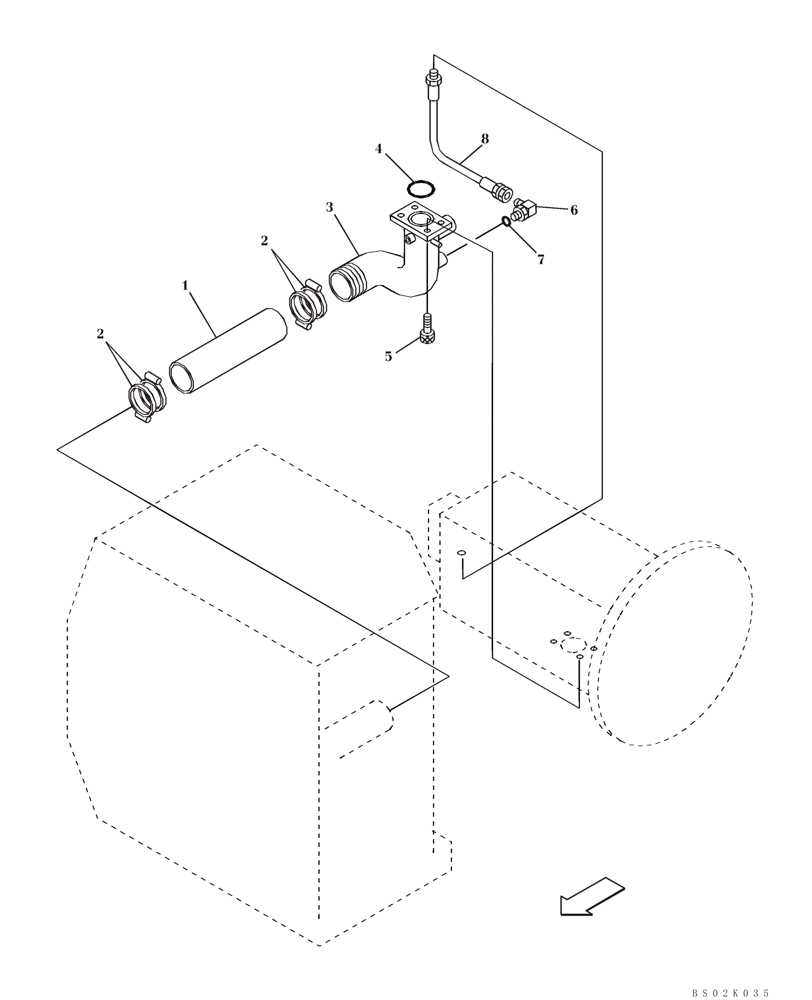

Запчасти Case CX330 (08-03) - HYDRAULICS - PUMP SUCTION LINE (08) - HYDRAULICS

1

KHJ2426

HOSE

1шт.

2

150905A1

CLAMP

4шт.

3

KSJ2891

TUBE ASSY.,67.9 mm ID x 76.3 mm OD

1шт.

4

154681A1

O-RING

1шт.

5

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 7

1шт.

7

154503A1

O-RING

1шт.

8

KSJ2868

HYDRAULIC HOSE,19.05 mm ID x 550.00 mm

1шт.
