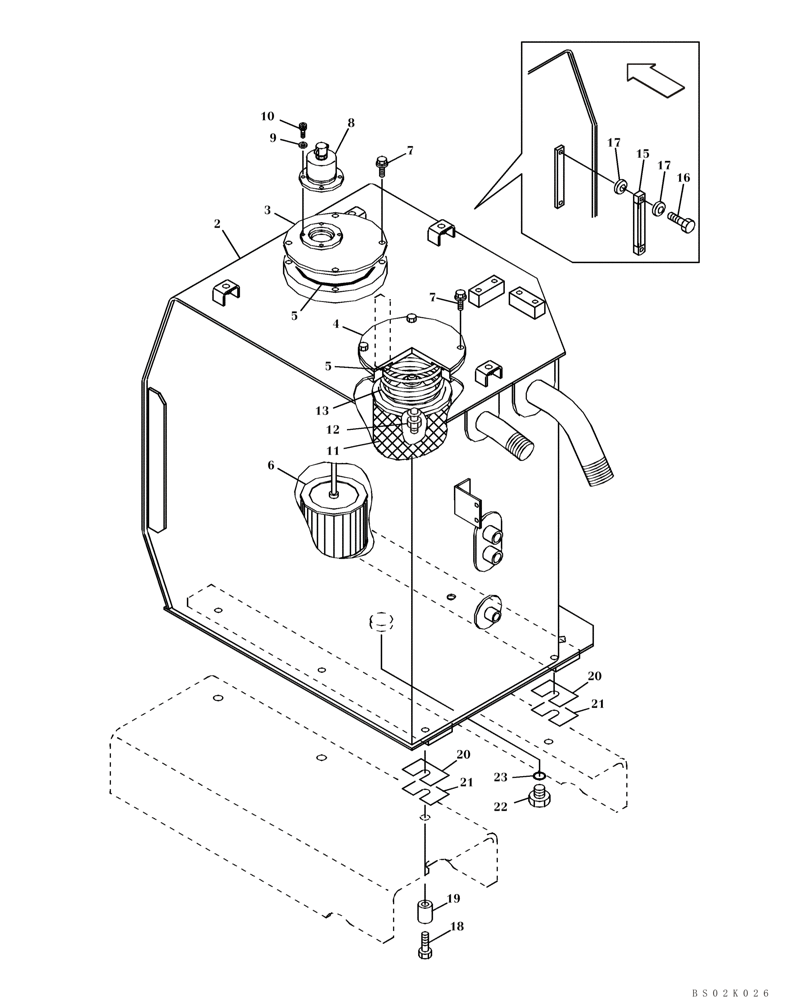

Запчасти Case CX330 (08-01) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

KSJ2853

TANK, HYDRAULIC OIL

Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Oil

1шт.

3

KTJ2044

COVER

Filter

1шт.

4

159275A1

COVER

Filter

1шт.

5

154837A1

O-RING

2шт.

6

KSJ2675

HYDRAULIC OIL FILTER

1шт.

7

166052A1

BOLT

8шт.

8

KHJ1781

BREATHER

Air; Incl. 8A - 8C

1шт.

8a

159702A1

HYDRAULIC OIL FILTER

Not Illustrated

1шт.

8b

159703A1

GASKET

Not Illustrated

1шт.

8c

KHJ1492

CAP

Not Illustrated

1шт.

9

892-11006

LOCK WASHER,M6

4шт.

10

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

11

KSJ2756

HYDRAULIC OIL FILTER

Return

1шт.

12

159273A1

VALVE

Relief

1шт.

13

KSJ2758

COMPRESSION SPRING

1шт.

163560A1

SIGHTGLASS

Oil Level; Incl. 15 - 17

1шт.

15

163561A1

GAUGE

1шт.

16

159492A1

BOLT

2шт.

17

159493A1

SEALING WASHER

SEAL WASHER

4шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

19

162301A1

SPACER

6шт.

20

150166A1

SHIM

0,80 mm (0,032 in)

1шт.

21

150479A1

SHIM

2,00 mm (0,079 in)

1шт.

22

152924A1

PLUG

Incl. 23

1шт.

23

154503A1

O-RING

1шт.
