Запчасти Case CX330 (02-01) - ENGINE MOUNTING (02) - ENGINE

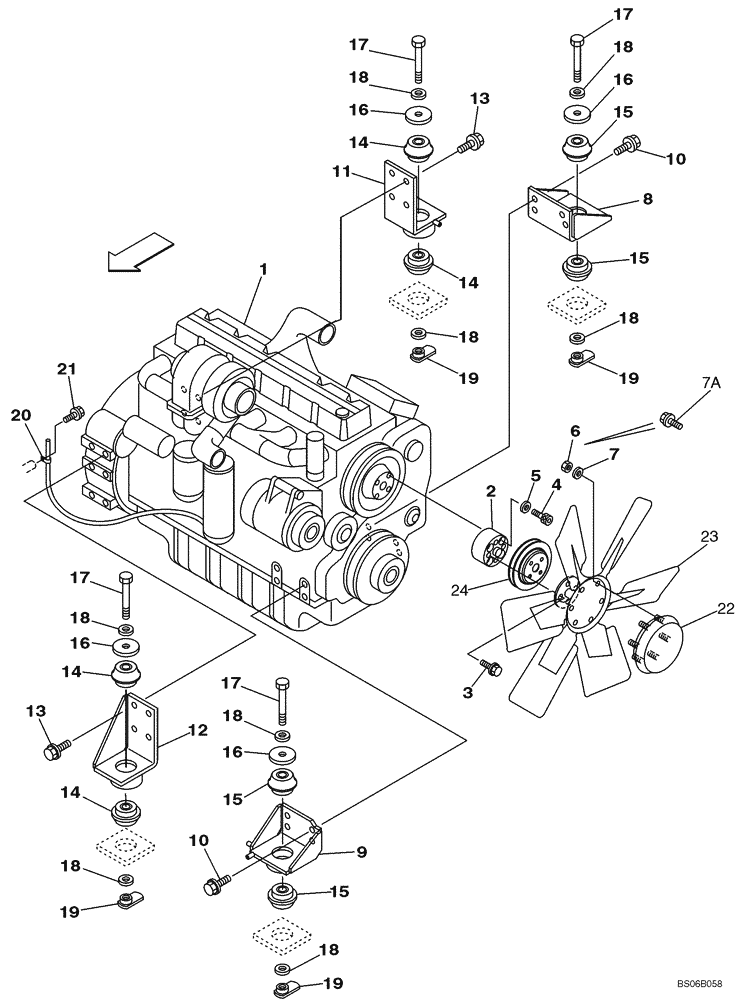

Схема запчастей Case CX330 - (02-01) - ENGINE MOUNTING (02) - ENGINE
18
16
19
5
10
17
16
13
4
14
14
9
19
22
17
15
24
18
16
7
11
14
18
6
20
14
2
12
13
18
10
23
17
19
3
21
18
8
18
1
15
15
7a
19
18
15
16
17
18

Артикул

Название

Примечание

Количество

1

372231A2

6TAA-8304 Emissions Certified Engine; See Figure(s) 02 -06 - 02 -25, 03-03 - 03-12; Service With 409463A1, OR 409463A1R; Replaces 372231A1

1шт.

2

KSH1002

SPACER

1шт.

3

166052A1

BOLT

4шт.

4

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

5

150409A1

WASHER

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

If Used

6шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

6шт.

7a

166345A1

BOLT

If Used

6шт.

8

KSH0993

SUPPORT ASSY.

1шт.

9

KSH0994

SUPPORT ASSY.

1шт.

10

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

8шт.

11

KSH0995

SUPPORT ASSY.

1шт.

12

KSH0996

SUPPORT ASSY.

1шт.

13

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

8шт.

14

KSH0891

SILENTBLOC

4шт.

15

KTH0567

SILENTBLOC

4шт.

16

150874A1

WASHER

4шт.

17

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

4шт.

18

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

8шт.

19

KSH0923

SPECIAL NUT

4шт.

20

153039A1

CLAMP

1шт.

21

KHN2132

BOLT,Hex Flg Hd, M6 x 16

1шт.

22

403896A1

DRIVE ASSY.

Viscous Fan

1шт.

23

389493A1

FAN

Engine Cooling

1шт.

24

A189155

PULLEY

Accessory Drive

1шт.

25

87411340

HOSE

Crankcase Vent, Not Illustrated

1шт.

26

157916A1

CLAMP

Used With Ref 27; Not Illustrated

2шт.

27

KSH1016

ADAPTER

Connects REF 25 (87411340 Hose) To Breather Hose On Engine, Not Illustrated

1шт.

Выбрано товаров: 28
