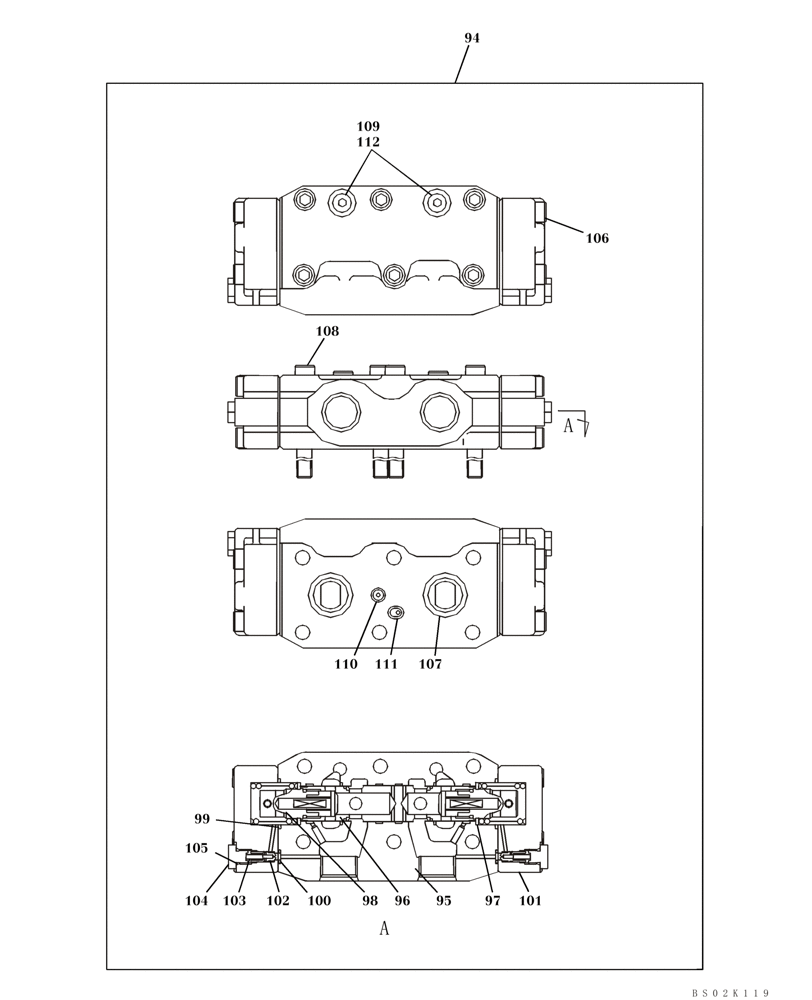

Запчасти Case CX330 (06-04C) - MOTOR ASSY - TRACK DRIVE, P.I.N. DAC0733142 - (06) - POWER TRAIN

KSA1298

MOTO-REDUCTION GEAR

Travel; Incl. 94 - 112; Also Incl. Parts On Figure(s) 06-02A, 06-03A, 06-04A

1шт.

94

LJ01263

VALVE

Incl. 95 - 112

1шт.

95

NSS

NOT SOLD SEPARAT

Body

1шт.

96

NSS

NOT SOLD SEPARAT

Spool, Valve

1шт.

97

LR00868

SPRING SEAT

2шт.

98

LG00434

COMPRESSION SPRING

2шт.

99

154569A1

O-RING

2шт.

100

154459A1

O-RING

2шт.

101

LW00384

CONTROL BLOCK

2шт.

102

LK00389

RESTRICTOR

2шт.

103

LG00435

COMPRESSION SPRING

2шт.

104

LK00390

PLUG

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

106

863-12045

HEX SOC SCREW,M12 x 45mm, Cl 12.9

8шт.

107

154549A1

O-RING

2шт.

108

863-12110

HEX SOC SCREW,M12 x 110mm, Cl 12.9

6шт.

109

LK00391

PLUG

2шт.

110

154459A1

O-RING

1шт.

111

154463A1

O-RING

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

LZ00628

SEAL KIT

Incl. 99, 100 105, 107, 110 - 112, Also Includes Parts on Figures 06-03A, 06-04A

1шт.
