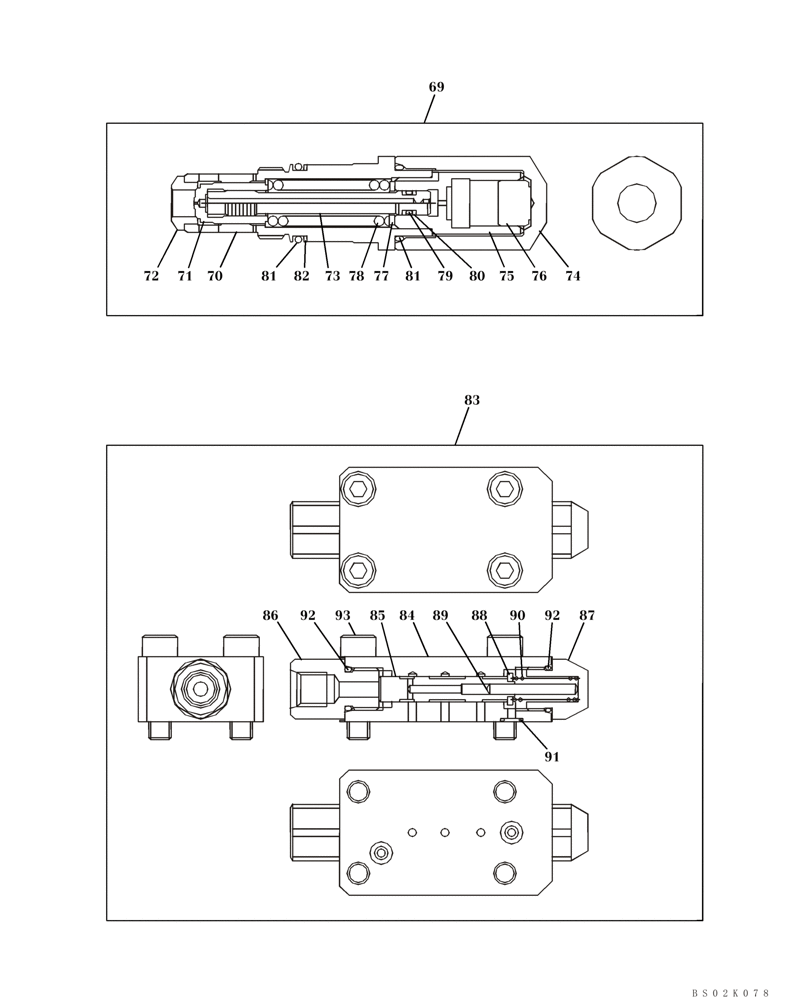

Запчасти Case CX330 (06-04A) - MOTOR ASSY - TRACK DRIVE, P.I.N. DAC0733142 - (06) - POWER TRAIN

KSA1298

MOTO-REDUCTION GEAR

Travel; Incl. 69 - 93; Also Incl. Parts On Figure(s) 06-02A, 06-3A, 06-04C

1шт.

69

LJ00958

VALVE, PRESSURE RELI

EF Housing; Incl. 69 - 82

2шт.

70

NSS

NOT SOLD SEPARAT

Socket

1шт.

71

NSS

NOT SOLD SEPARAT

Valve

1шт.

72

NSS

NOT SOLD SEPARAT

Seat

1шт.

73

NSS

NOT SOLD SEPARAT

Piston

1шт.

74

NSS

NOT SOLD SEPARAT

Cap

1шт.

75

NSS

NOT SOLD SEPARAT

Body

1шт.

76

NSS

NOT SOLD SEPARAT

Piston

1шт.

77

NSS

NOT SOLD SEPARAT

Shim, Plate

1шт.

78

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

79

154451A1

O-RING

1шт.

80

153943A1

BACK-UP RING

2шт.

81

154509A1

O-RING

2шт.

82

153987A1

BACK-UP RING

1шт.

83

NSS

NOT SOLD SEPARAT

Valve; Incl. 84 - 93

1шт.

84

NSS

NOT SOLD SEPARAT

Body

1шт.

85

NSS

NOT SOLD SEPARAT

Spool

1шт.

86

LK00387

SOCKET

1шт.

87

LK00388

PLUG

1шт.

88

LR00866

SPRING SEAT

1шт.

89

LA00833

SPECIAL PIN

1шт.

90

LG00433

COMPRESSION SPRING

1шт.

91

154447A1

O-RING

2шт.

92

154475A1

O-RING

2шт.

93

LA00384

BOLT,Hex Skt Hd

4шт.

LZ00628

SEAL KIT

Incl. 79 - 82 91, 92, Also Includes Parts on Figures 06-03A, 06-04C

1шт.
