(06-03A) - MOTOR ASSY - TRAVEL, INLET AND OUTLET, P.I.N. DAC0733142 -

Запчасти Case CX330 (06-03A) - MOTOR ASSY - TRAVEL, INLET AND OUTLET, P.I.N. DAC0733142 - (06) - POWER TRAIN

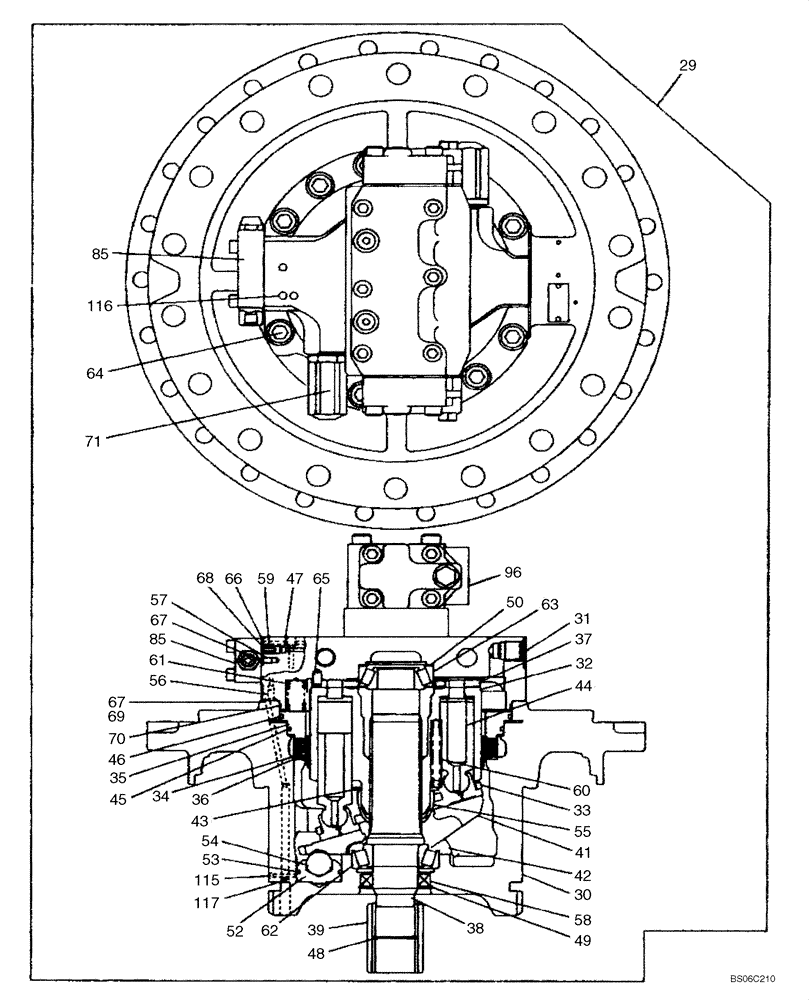

Схема запчастей Case CX330 - (06-03A) - MOTOR ASSY - TRAVEL, INLET AND OUTLET, P.I.N. DAC0733142 - (06) - POWER TRAIN
57
42
37
41
71
39
65
46
96
116
47
69
33
48
32
68
67
115
55
56
62
54
38
29
49
52
45
117
34
31
44
35
85
58
70
53
63
66
67
61
85
64
43
36
60
59
50
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KSA1298

MOTO-REDUCTION GEAR

Travel; Incl. 29 - 114, Also Includes Parts on Figures 06-02A, 06-04A, 06-04C

1шт.

29

LJ01273

HYDRAULIC MOTOR

Motor, Incl. 30 - 117

1шт.

30

LW00386

HOUSING

1шт.

31

LW00387

COVER

1шт.

32

LS00207

CYLINDER BLOCK

1шт.

33

LH00320

RETAINER

1шт.

34

LR00858

PLATE

4шт.

35

LJ00954

PISTON

1шт.

36

LR00859

ADJUSTING PLATE

5шт.

37

LR00877

PLATE

1шт.

38

LB00792

DRIVE SHAFT

1шт.

39

LB00793

COUPLING FLANGE

1шт.

LR01061

PLATE

Incl. 41, 42

1шт.

41

NSS

NOT SOLD SEPARAT

Plate

1шт.

42

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

43

LR00950

SPRING SEAT

1шт.

44

LJ00968

JACK PISTON

9шт.

45

LE00994

SEALING RING

SEALRING

1шт.

46

LE00955

SEAL

1шт.

47

LJ00956

VALVE, CHECK

3шт.

48

800-2140

SNAP RING,M40, Int

1шт.

49

800-2168

SNAP RING,M68, Int

1шт.

50

LH00389

SHIM KIT

Incl. 50A - 50F; Component Parts Are Not Illustrated

1шт.

50a

LH00428

SHIM,0.4mm Thk

1шт.

50b

LH00429

SHIM,0.5mm Thk

1шт.

50c

LH00430

SHIM,0.6mm Thk

1шт.

50d

LH00431

SHIM,0.7mm Thk

1шт.

50e

LH00432

SHIM,0.8mm Thk

1шт.

50f

LH00433

SHIM,0.9mm Thk

1шт.

LJ01075

PISTON

Incl. 52, 53

1шт.

52

NSS

NOT SOLD SEPARAT

Piston

1шт.

53

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

54

LX00044

BALL

1шт.

55

LB00795

BALL JOINT

1шт.

56

TK00140

RESTRICTOR

Replaces LK00384

1шт.

57

LK005000

RESTRICTOR

Replaces LK00385

1шт.

58

LE00997

OIL SEAL

1шт.

59

LG00429

COMPRESSION SPRING

3шт.

60

LG00430

COMPRESSION SPRING

9шт.

61

LG00431

COMPRESSION SPRING

14шт.

62

LB00796

TAPERED BEARING,45mm ID x 85mm OD x 24.75mm W

1шт.

63

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

64

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

10шт.

65

837-8012

DOWEL,M8 x 12

8 x 12 mm

1шт.

66

154447A1

O-RING

3шт.

67

154455A1

O-RING

2шт.

68

154459A1

O-RING

3шт.

69

LE00998

O-RING

1шт.

70

LE00999

O-RING

1шт.

71

LJ00958

VALVE, PRESSURE RELI

EF See Figure 06-04A

2шт.

85

NSS

NOT SOLD SEPARAT

Valve; See Figure 06-04A

1шт.

96

LJ01263

VALVE

See Figure 06-04C

1шт.

115

LK00392

PLUG

1шт.

116

LK00393

PLUG

4шт.

117

LK00394

PLUG

1шт.

LZ00628

SEAL KIT

Incl. 28, 45, 46, 58, 66 - 70, Also Includes Parts on Figures 06-04A, 06-04C

1шт.
