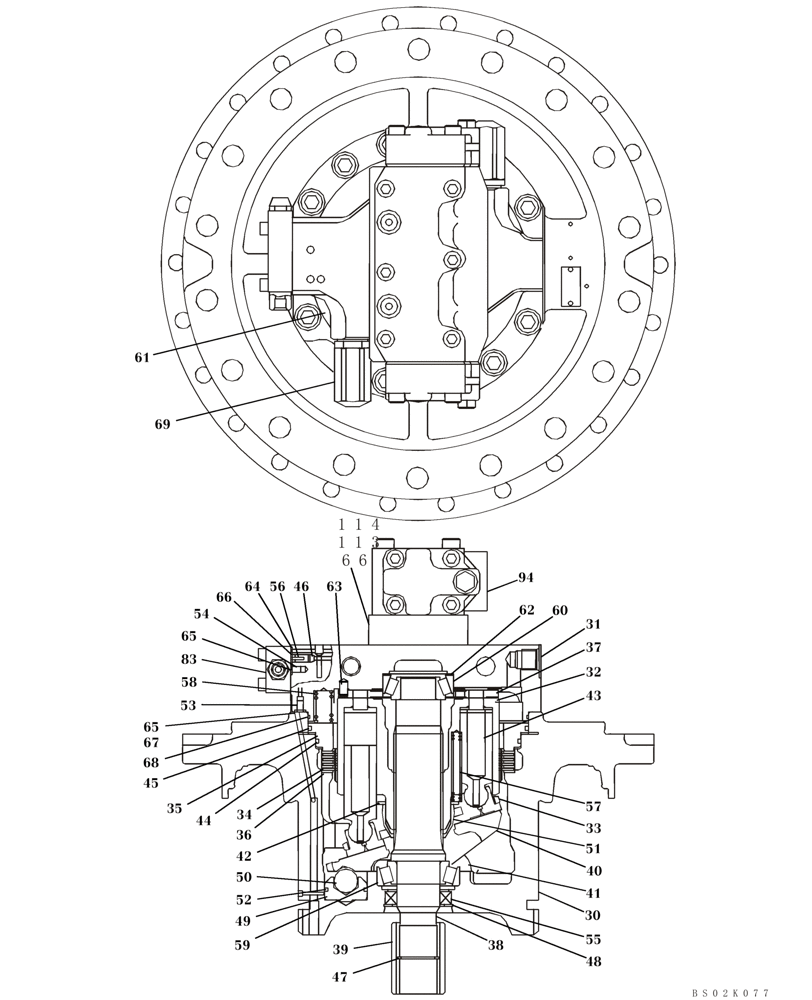

Запчасти Case CX330 (06-03) - MOTOR ASSY - TRAVEL, INLET AND OUTLET, P.I.N. DAC0733101 - DAC0733141 (06) - POWER TRAIN

KSA1101

MOTO-REDUCTION GEAR

Travel, Incl. 30 - 114; Also Includes Parts On Figures 06-02, 06-04, 06-04B

1шт.

30

LW00386

HOUSING

1шт.

31

LW00387

COVER

1шт.

32

LS00207

CYLINDER BLOCK

1шт.

33

LH00320

RETAINER

1шт.

34

LR00858

PLATE

4шт.

35

LJ00954

PISTON

1шт.

36

LR00859

ADJUSTING PLATE

5шт.

37

LR00877

PLATE

1шт.

38

LB00792

DRIVE SHAFT

1шт.

39

LB00793

COUPLING FLANGE

1шт.

40

LR00878

PLATE

1шт.

41

LB00794

BEARING, ROLLER

2шт.

42

LR00879

SPRING SEAT

1шт.

43

LJ00968

JACK PISTON

9шт.

44

LE00994

SEALING RING

SEALRING

1шт.

45

LE00955

SEAL

1шт.

46

LJ00956

VALVE, CHECK

3шт.

47

800-2140

SNAP RING,M40, Int

1шт.

48

800-2168

SNAP RING,M68, Int

1шт.

49

LJ00969

PISTON

1шт.

50

LX00044

BALL

1шт.

51

LB00795

BALL JOINT

1шт.

52

LE00996

SEAL

1шт.

53

TK00140

RESTRICTOR

Replaces LK00384

1шт.

54

LK005000

RESTRICTOR

Replaces LK00385

1шт.

55

LE00997

OIL SEAL

1шт.

56

LG00429

COMPRESSION SPRING

3шт.

57

LG00430

COMPRESSION SPRING

9шт.

58

LG00431

COMPRESSION SPRING

14шт.

59

LB00796

TAPERED BEARING,45mm ID x 85mm OD x 24.75mm W

1шт.

60

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

61

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

10шт.

62

LH00321

SHIM

1шт.

63

837-8012

DOWEL,M8 x 12

8 x 12 mm

1шт.

64

154447A1

O-RING

3шт.

65

154455A1

O-RING

2шт.

66

154459A1

O-RING

5шт.

67

LE00998

O-RING

1шт.

68

LE00998

O-RING

1шт.

69

LJ00958

VALVE, PRESSURE RELI

EF See Figure 06-04

2шт.

83

LJ00962

VALVE

See Figure 06-04

1шт.

94

LJ00964

VALVE

See Figure 06-04B

1шт.

113

LH00324

SPACER

1шт.

114

154549A1

O-RING

2шт.
