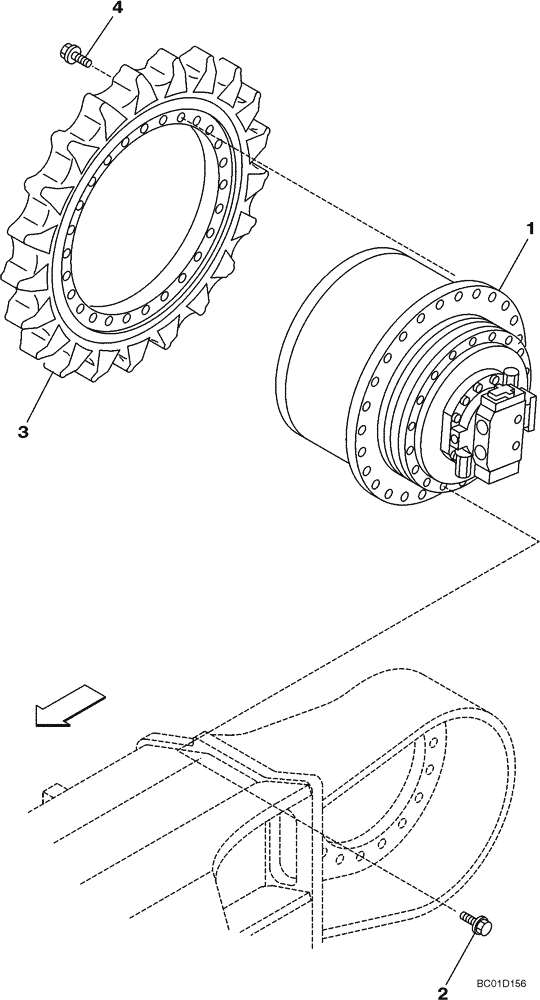

Запчасти Case CX330 (06-01) - TRACK DRIVE ASSY (06) - POWER TRAIN

1

KSA1101

MOTO-REDUCTION GEAR

Travel; See Figures 06-02, 06-03, 06-04, 06-04B; P.I.N. DAC0733101 - DAC0733141

2шт.

1a

KSA1298

MOTO-REDUCTION GEAR

Travel; See Figure 06-02A, 06-03A, 06-04A, 06-04C; P.I.N. DAC0733142 And After

2шт.

1b

KSA1322

MOTO-REDUCTION GEAR

Travel; See Figure 06-02B, 06-03B, 06-04D, 06-04E

2шт.

2

105R024Y070R

BOLT

36шт.

3

KSA1061

SPROCKET

2шт.

4

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

52шт.
