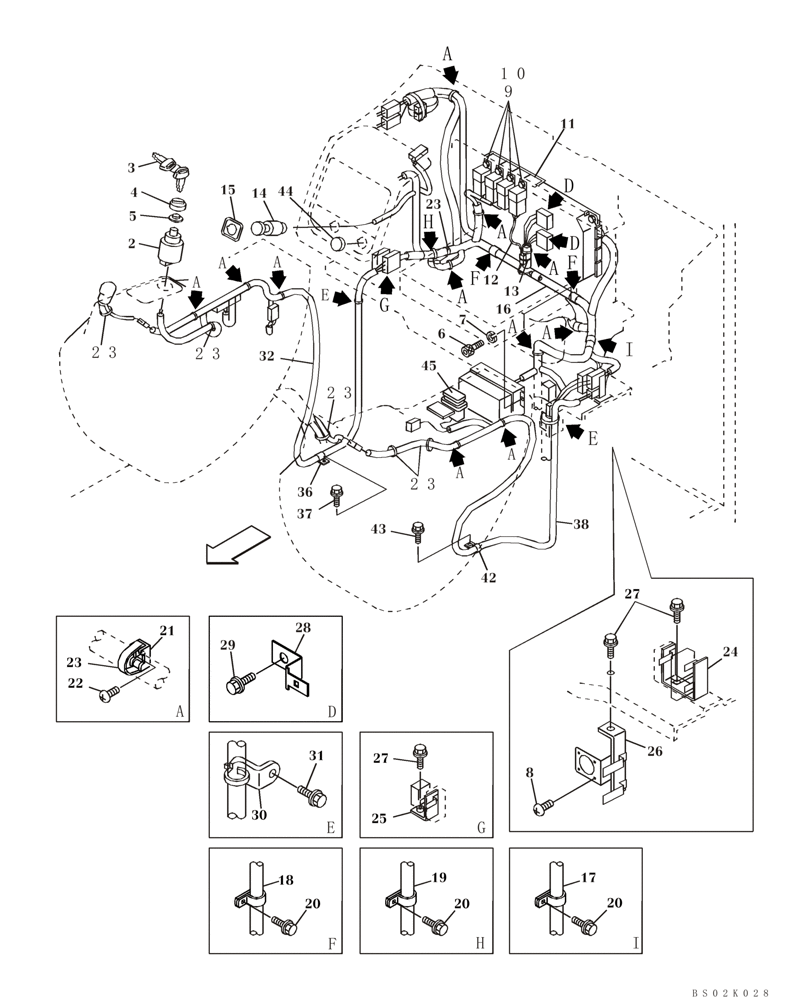

Запчасти Case CX330 (04-09) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Starter; Incl. 2 - 5, Replaces KHR3270

1шт.

2

KHR3078

IGNITION SWITCH

1шт.

3

KHR20070

IGNITION KEY

KEY CASE, Replaces 150979A1

1шт.

4

KHR3080

CAP

1шт.

5

KHR3081

WASHER

1шт.

6

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

7

892-11006

LOCK WASHER,M6

2шт.

8

145N003S008R

SCREW,Pan Hd, M3 x 8mm

4шт.

9

159919A1

RELAY

4шт.

10

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

11

KHP1720

LABEL

1шт.

12

KTR0539

HARNESS

1шт.

12a

231959A1

DIODE

Not Illustrated

1шт.

13

150496A1

MOUNTING CLIP

1шт.

14

KHR2488

LIGHTER, CIGARETTE

1шт.

15

KHR3141

PROTECTOR

1шт.

16

KRR1387

HARNESS

1шт.

17

159149A1

COLLAR

1шт.

18

157807A1

COLLAR

2шт.

19

157806A1

COLLAR

1шт.

20

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

21

150860A1

COLLAR

11шт.

22

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

11шт.

23

150067A1

MOUNTING CLIP

150 mm (6 in)

1шт.

24

KHR2746

BRACKET

1шт.

25

KHR2747

BRACKET

1шт.

26

KHR3194

BRACKET

1шт.

27

166345A1

BOLT

3шт.

28

165405A1

CLIP

2шт.

29

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

30

KHR2580

CLAMP

2шт.

31

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

32

KHR3195

HARNESS

1шт.

36

157806A1

COLLAR

1шт.

37

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

38

KHR2712

HARNESS

1шт.

42

159150A1

COLLAR

1шт.

43

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

44

KHR2743

CAP COVER

1шт.

45

KHR3196

SWITCH

1шт.
