Запчасти Case CX330 (04-06) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

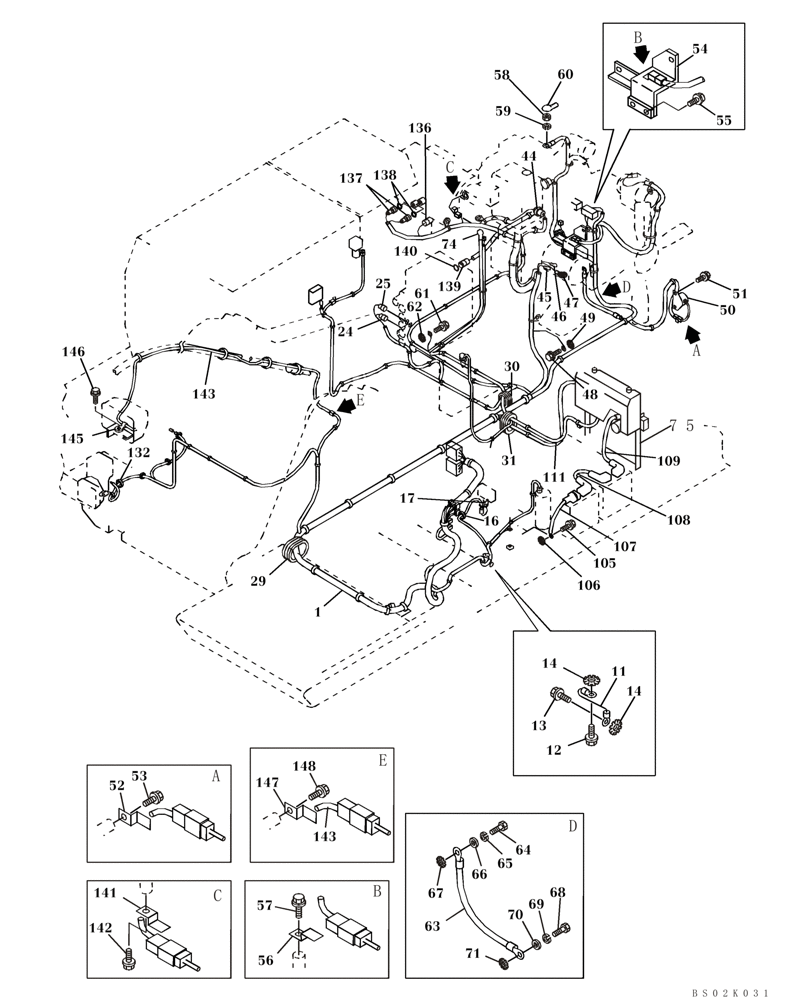

Схема запчастей Case CX330 - (04-06) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS
31
48
c
b
109
25
146
62
63
108
56
65
71
d
57
14
145
69
64
d
66
74
13
141
12
c
58
55
49
47
107
139
142
30
24
106
e
59
132
68
147
50
44
17
61
29
54
bs02k031
140
143
138
137
136
143
11
b
67
45
52
105
53
70
148
a
51
a
46
16
75
1
60
e
14
111

Артикул

Название

Примечание

Количество

1

KSR0993

WIRE HARNESS

Replaces KSR0955

1шт.

11

KHR2713

ELECTRIC CABLE

1шт.

12

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

13

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

14

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

16

150520A1

GROMMET

1шт.

17

159599A1

PRESSURE SWITCH

Auxiliary/Swing

1шт.

17

KHR10790

PRESSURE SWITCH

Auxiliary/Swing; Use If Switch Has A Pigtail Connector

1шт.

24

159899A1

PRESSURE SWITCH

Pressure, Upper

1шт.

24

KHR10800

PRESSURE SWITCH

Pressure, Upper; Use If Switch Has A Pigtail Connector

1шт.

25

159900A1

PRESSURE SWITCH

Pressure, Travel (Back-up Alarm)

1шт.

25

KHR10810

PRESSURE SWITCH

Pressure, Travel (Back-up Alarm); Use If Switch Has A Pigtail Connector

1шт.

29

KSJ2508

GROMMET

1шт.

30

KBJ2788

GROMMET

1шт.

31

KEJ0421

GROMMET

1шт.

44

442300A1

SWITCH

Coolant Level Switch.

1шт.

45

159182A1

DUST CAP

1шт.

46

159176A1

CAP

1шт.

47

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

48

167518A1

BOLT

1шт.

49

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

50

KHR3852

ALARM

1шт.

51

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

52

158962A1

CLIP

1шт.

53

167518A1

BOLT

1шт.

54

KSR0959

BRACKET

1шт.

55

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

56

KHR3748

COLLAR

1шт.

57

KHJ1215

BOLT,Spcl

1шт.

58

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

59

892-11006

LOCK WASHER,M6

1шт.

60

159182A1

DUST CAP

1шт.

61

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

62

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

63

KHR3899

CABLE ASSY.

1шт.

64

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

65

892-11010

LOCK WASHER,M10

1шт.

66

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

67

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

68

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

69

892-11012

LOCK WASHER,M12

1шт.

70

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

71

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

74

159185A1

CAP

1шт.

75

KSR0957

BRACKET

See Figure 04 -08

1шт.

105

167518A1

BOLT

1шт.

106

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

107

159915A1

ELECTRIC CABLE

Battery - P.I.N. DAC0733101 - DAC331447

1шт.

107a

KHR12370

POS BATTERY CABLE

Battery - P.I.N. DAC331448 -; Not Illustrated

1шт.

108

KHR2430

ELECTRIC CABLE

Battery - P.I.N. DAC0733101 - DAC331447

1шт.

108a

KHR12100

POS BATTERY CABLE

Battery - P.I.N. DAC331448 -; Not Illustrated

1шт.

109

KHR3075

ELECTRIC CABLE

Battery - P.I.N. DAC0733101 - DAC331447

1шт.

109a

KHR12190

POS BATTERY CABLE

Battery L=460mm, P.I.N. DAC331448 -; Not Illustrated

1шт.

111

KHR3898

CABLE ASSY.

Starter - P.I.N. DAC0733101 - DAC331447

1шт.

111a

KHR12290

ELECTRIC CABLE

Starter - P.I.N. DAC331448 -; Not Illustrated

1шт.

132

159656A1

GROMMET

1шт.

136

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

137

168135A1

SENSOR,50 MPa

Pressure; Incl. 138

2шт.

138

154475A1

O-RING

1шт.

139

KHR2915

SENSOR,5 MPa

Pressure (neg-cont.); Incl. 140

1шт.

140

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

141

165405A1

CLIP

1шт.

142

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

143

KHR3170

HARNESS

1шт.

145

KHR2583

CLAMP

1шт.

146

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

1шт.

147

158962A1

CLIP

1шт.

148

167518A1

BOLT

1шт.
