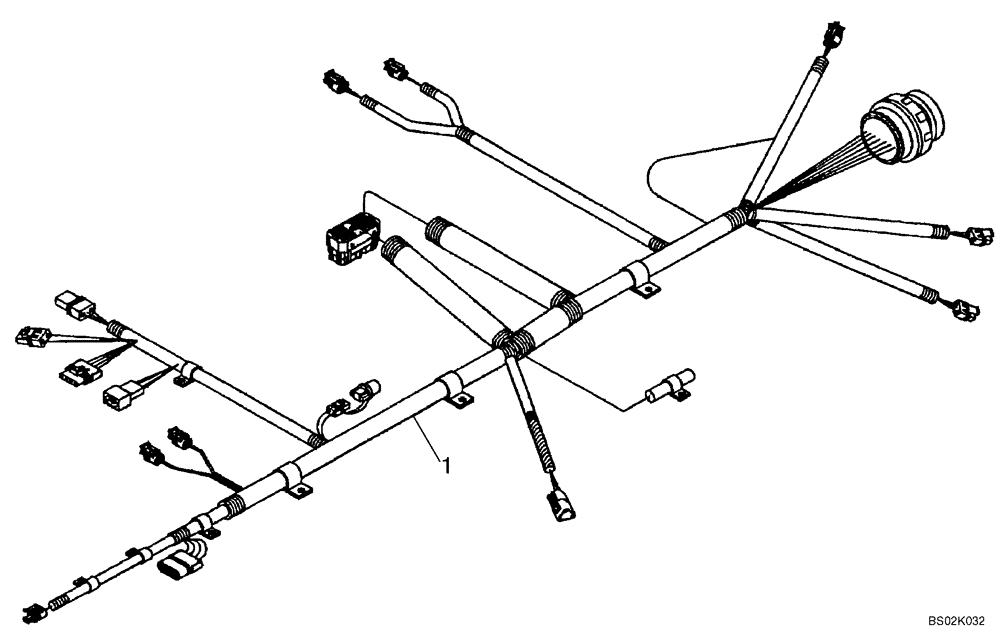

Запчасти Case CX330 (04-05) - HARNESS - ELECTRONIC IGNITION CONTROL MODULE (04) - ELECTRICAL SYSTEMS

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

86991439

HARNESS

Components Not Illustrated; No Longer Available, For Service Order 87414631 Harness, 87414641 Bracket, See Figure 04-04

1шт.

1

87414631

HARNESS

Components Not Illustrated

1шт.

194788A1

CONNECTOR, 2-POLE

2шт.

194790A1

CONNECTOR, 2-POLE

1шт.

198456A1

ELEC CONNECTOR,Female

1шт.

451279A1

TERMINAL

Deutsch Socket 16-20 AWG

48шт.

225055C1

PLUG

2шт.

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

6шт.

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

4шт.

225127C1

PLUG

2шт.

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

225295C1

ELEC CONNECTOR,Female, 3 Pin

1шт.

225296C1

ELEC CONNECTOR

1шт.

225297C1

ELEC CONNECTOR

W3P

1шт.

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

225316C1

ELEC CONNECTOR,Female, 2 Pin

2шт.

225317C1

WEDGE

2шт.

225318C1

ELEC CONNECTOR,2 Pin

W2P

1шт.

225326C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

225327C1

WEDGE,Lock, Black

Type LS

1шт.

225328C1

ELEC CONNECTOR,, 4 Pin

4 Pin

1шт.

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

26шт.

225365C1

SOCKET

5шт.

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

3шт.

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-CAC Plut DT Series

1шт.

245482C1

ELEC CONNECTOR,2 Pin

1шт.

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

245486C1

ELEC CONNECTOR,4 Pin

1шт.

245487C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

383033A1

MULTIPOLE CONNECTOR,Female

Packard 150 Metri-Pack P2S

19шт.

441655A1

CAP

L-K Industry Protective

2шт.

441657A1

ELEC CONNECTOR,Female, 3 Pin

Packard 3 Pin 150.2 Series

1шт.

441658A1

ELEC CONNECTOR,Female, 3 Pin

Packard Metri-Pack 3 Pin

3шт.

441660A1

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Packard 150.2 P2S Series

2шт.

441669A1

ELEC CONNECTOR,Female, 50 Pin

DRC 50 Pin

1шт.

441670A1

ELEC CONNECTOR,Male, 23 Pin

HD30 23 Pin

1шт.

453133C1

PLUG

Cavity Seal

2шт.

J944110

SUPPRESSOR

Transient

1шт.

L124722

ELEC CONNECTOR

10шт.

86991761

PLUG

Cavity

3шт.

86991762

CONNECTOR,ELECTRIC

2 Pos.Key A, Green

1шт.

86991767

TERMINAL CONNECTOR

0,8 mm Soc. Tin

1шт.

86991435

PROTECTIVE COVER

1шт.

225349C1

POWER SOCKET,Female, 0.75 - 2 mm2

CONTACT SKT 16-18AWG COP NKL P

6шт.
