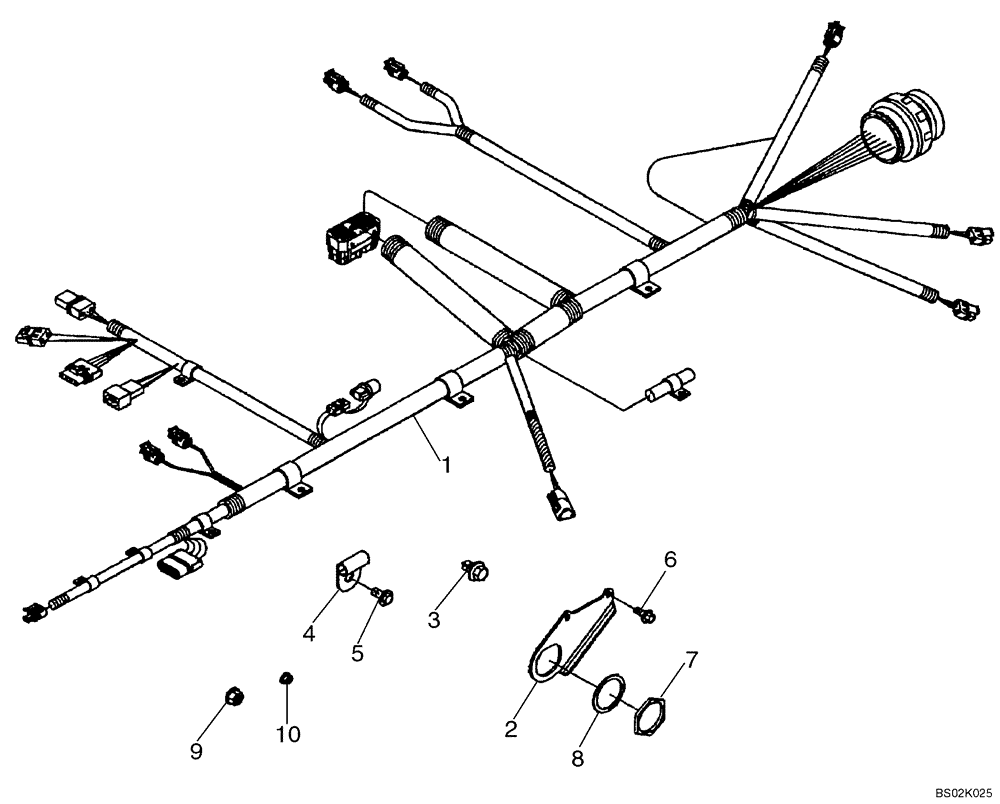

Запчасти Case CX330 (04-04) - MOUNTING - ELECTRONIC IGNITION CONTROL MODULE HARNESS (04) - ELECTRICAL SYSTEMS

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

86991439

HARNESS

Electronic Control Module; No Longer Available; For Service Order 87414631 Harness and 87414641 Bracket; See Figure 04 -05

1шт.

1

87414631

HARNESS

Electronic Control Module

1шт.

2

J943435

BRACKET

Harness Retainer

1шт.

4

J923016

CLIP

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

6

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

7

459329C1

NUT

1шт.

8

459330C1

LOCK WASHER

1шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

10

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

11

J822934

GREASE

1,75 oz; Not Illustrated

1шт.

12

87414641

BRACKET

Used With 87414631 Harness; Not Illustrated

1шт.

13

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

Not Illustrated

1шт.
