Запчасти Case CX330 (04-03) - MODULE, ENGINE CONTROL (04) - ELECTRICAL SYSTEMS

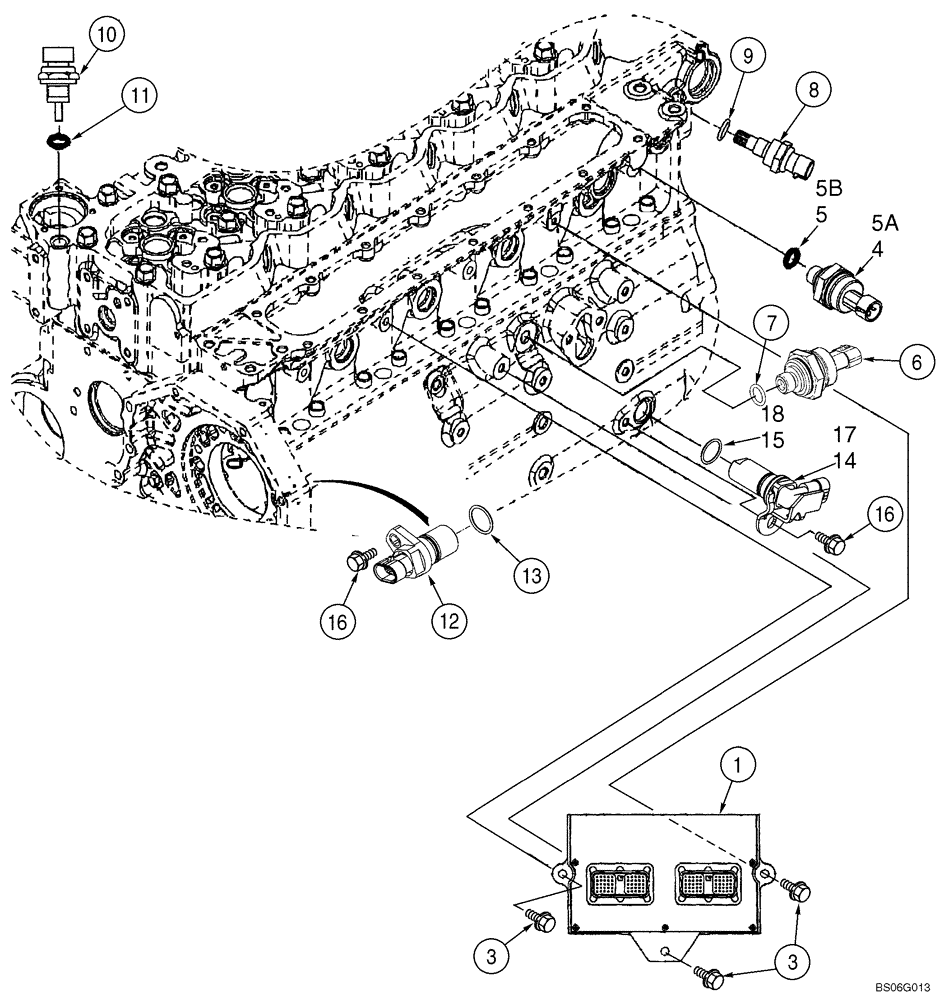

Схема запчастей Case CX330 - (04-03) - MODULE, ENGINE CONTROL (04) - ELECTRICAL SYSTEMS
4
9
5b
16
11
5
3
15
8
17
16
7
14
12
10
6
5
13
5a
3
18

Артикул

Название

Примечание

Количество

1

J944125

ECU

1шт.

1

JR944125

REMAN-ELECT MONITOR

Reman-Monitor

1шт.

1

JC944125

CORE-MONITOR

Return Part Number

1шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

J348747

SENSOR

Manifold Air Pressure; Also Known As Turbo Boost Pressure Switch; Incl. 5; No Longer Available, For Service Order Ref 5A, 87559412 Sensor

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

5a

87559412

SENSOR

Manifold Air Pressure, Incl. 5B

1шт.

5b

87536785

O-RING,0.087" Thk x 0.445" ID

1шт.

6

87400188

SENSOR

Pressure; Incl. 7

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

8

J408345

SENSOR

Temperature; Incl. 9

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J865346

SENSOR

Temperature; Incl. 11

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

87382544

SENSOR

Position; Incl. 13; Replaces 87405627

2шт.

13

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

14

J4002066

SENSOR

Position; Incl. 15; No Longer Available, For Service Order Ref 17, 87375189 Sensor

1шт.

15

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

16

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

17

87375189

SENSOR

Position, Incl. 18

1шт.

18

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

Выбрано товаров: 21
