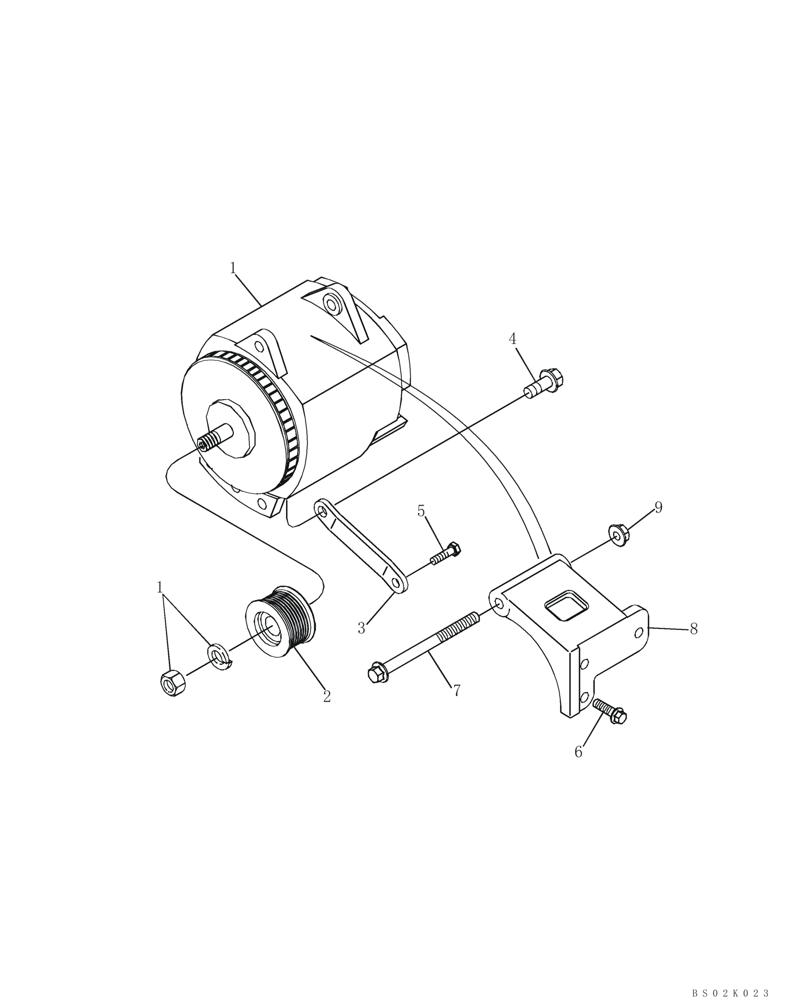

Запчасти Case CX330 (04-02) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

J939029

ALTERNATOR

Component Parts Not Available At Time of Printing

1шт.

2

87452704

PULLEY,70.66mm OD

Replaces 86975356

1шт.

3

J944407

BRACE

1шт.

4

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

Brace To Alternator

1шт.

5

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

6

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

7

844-12150

BOLT,Hvy Hex, M12 x 150mm, Cl 8.8

1шт.

8

J944405

SUPPORT

1шт.

9

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.
