(04-01) - STARTER MOUNTING

Запчасти Case CX330 (04-01) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

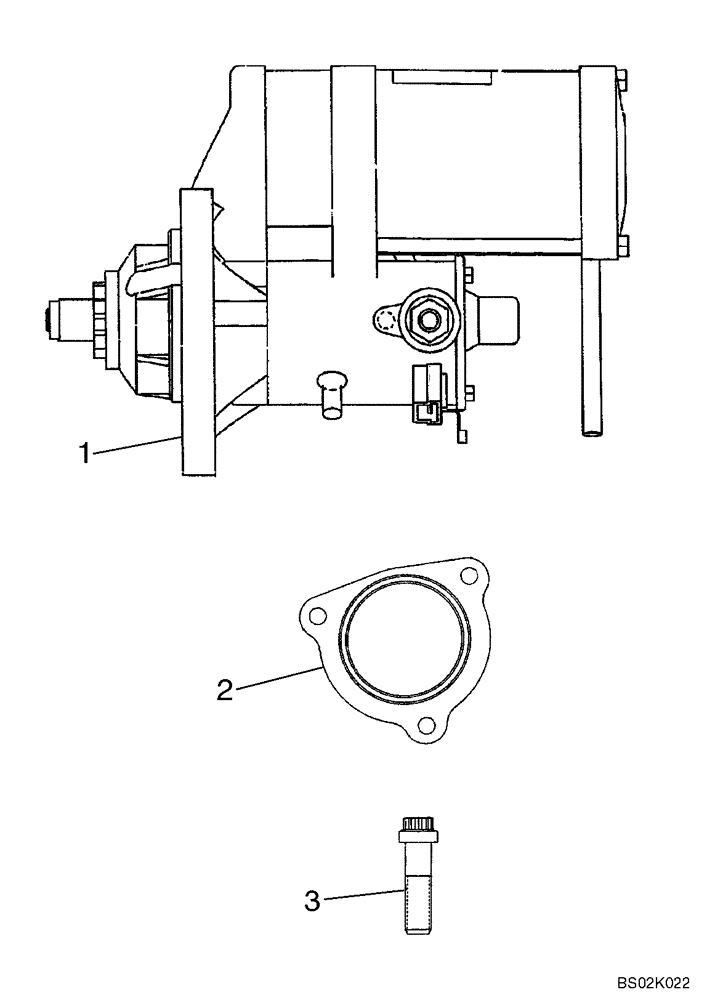

Схема запчастей Case CX330 - (04-01) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

223900A2

STARTING MOTOR,24V, 7.5kW

Component Parts Not Available At Time of Printing; Battery Terminal and Switch Terminal Hardware Included

1шт.

1

223900A2R

REMAN-STARTER,24V, 7.5kW

Remanufactured Starter

1шт.

1

223900A2C

CORE-STARTER,24V, 7.5kW

Return Part Number

1шт.

2

J918892

SPACER

1шт.

3

87440693

BOLT

Replaces J908321

3шт.
