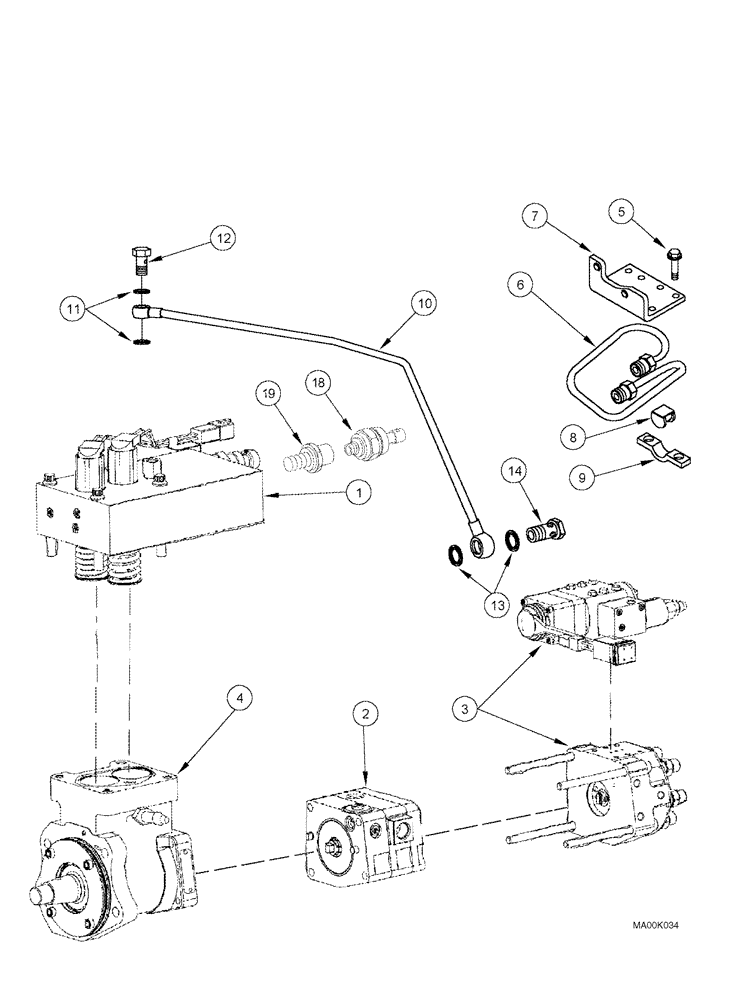

Запчасти Case CX330 (03-06) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

.

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

J4076442

FUEL INJECTION PUMP

Incl. 1 - 19

1шт.

JR4076442

REMAN-INJECTION PUMP

Reman for New P/N J4076442

1шт.

JC4076442

CORE-INJECTION PUMP

Return Part Number

1шт.

A78006

KIT

Kit -- Instructions 6-10880 and Electrical Connector J164187

1шт.

1

J4025319

REPAIR KIT

Accumulator; See Figure 03 -07

1шт.

87442224

KIT

Stator, New; See Figure 03-09

1шт.

87440895

KIT

Equalizer, New

1шт.

87440896

KIT

Distributor, New

1шт.

2

J4089074

REPAIR KIT

Gear Pump, See Figure 03-08

1шт.

3

J4010269

REPAIR KIT

Distributor; See Figure 03-09

1шт.

4

A77928

HOUSING

Cam Housing; See Figure 03-10

1шт.

A77932

KIT

Fuel Supply; Incl. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt, Special

8шт.

6

NSS

NOT SOLD SEPARAT

Tube

1шт.

7

NSS

NOT SOLD SEPARAT

Bracket

1шт.

8

NSS

NOT SOLD SEPARAT

Isolator

4шт.

9

NSS

NOT SOLD SEPARAT

Clamp

4шт.

10

J4010174

FUEL TUBE,119, 189.7 mm L

1шт.

11

J935170

SPECIAL WASHER

2шт.

12

J918002

BANJO BOLT

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

14

J4002006

BANJO BOLT,M14 x 1.5 x 26.40mm

1шт.

18

J4010051

TEMPERATURE SENDER

1шт.

19

J4010084

ADAPTER

1шт.
