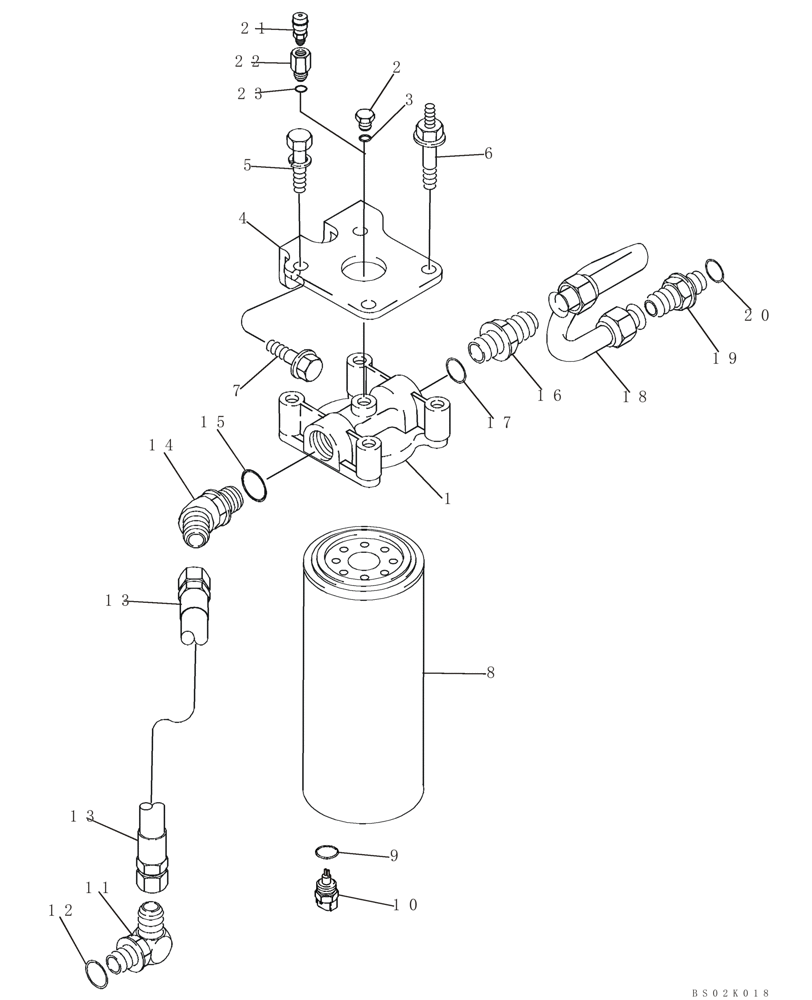

Запчасти Case CX330 (03-03) - FUEL FILTER AND CONNECTIONS (03) - FUEL SYSTEM

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

J944987

HEAD

Filter

1шт.

2

J678923

PLUG,M10 x 1

10 mm; Incl. 3; Remove and Discard If Using Ref 21, 22

1шт.

3

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

4

J944845

BRACKET

1шт.

5

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

3/8 NC x 1-1/4 in

3шт.

6

J944099

STUD

1шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

J800394

FUEL FILTER

Fuel Filter; Incl. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Filter, Fuel

1шт.

9

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Sensor

1шт.

11

311171A1

ELBOW

45 deg; Incl. 12

1шт.

12

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

13

J944988

FUEL HOSE,12.00"

1шт.

14

326380A1

ELBOW

Incl. 15

1шт.

15

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

16

J606653

ADAPTER

Incl. 17

1шт.

17

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

18

J943442

FUEL TUBE,0.625" OD

1шт.

19

311187A1

ADAPTER

Incl. 20

1шт.

20

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

1шт.

21

451023A1

INDICATOR

Fuel Restriction; If Used

1шт.

22

250838A2

HYD CONNECTOR

Incl. 23; If Used

1шт.

23

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.
