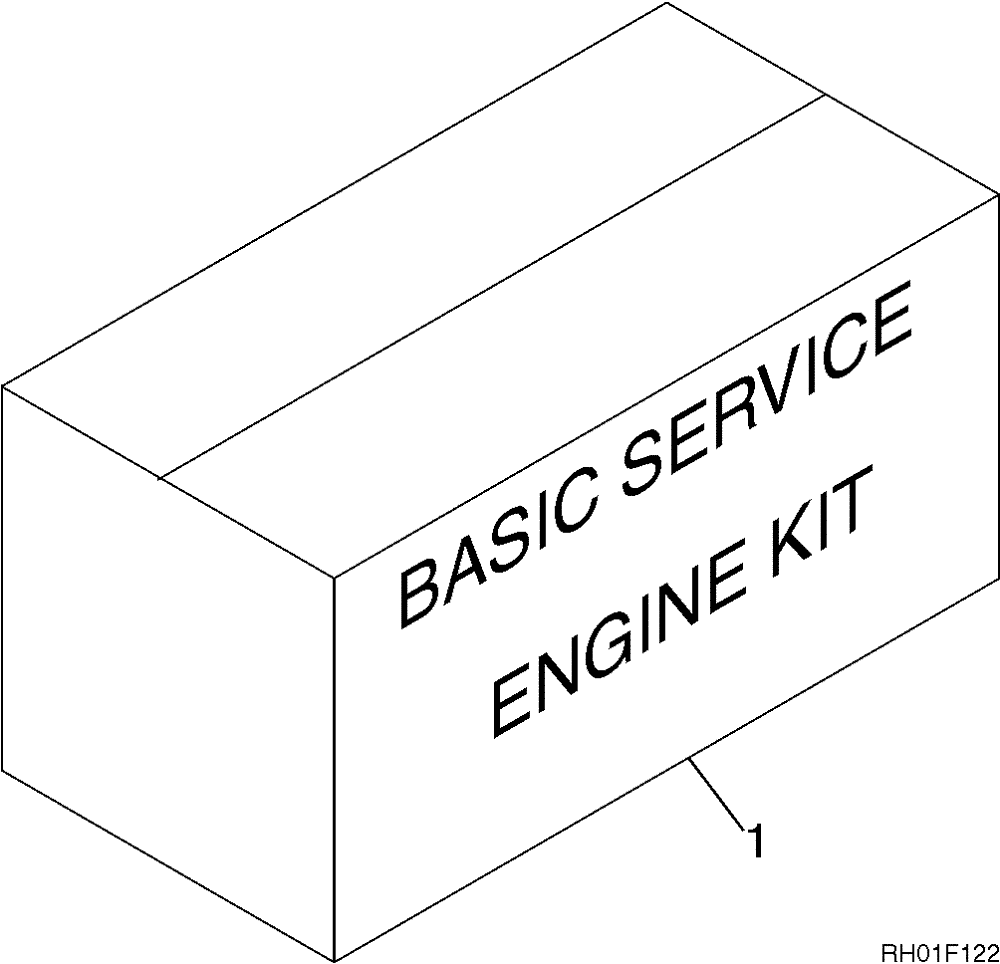

Запчасти Case CX330 (02-25) - GASKET KIT, BASIC SERVICE ENGINE (02) - ENGINE

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

A78003

GASKET KIT

Incl. 2 - 26

1шт.

2

222-993

GASKET,3/8 Tube, Fl, Copper

Not Used In This Application

2шт.

3

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Figure 02-15, Ref 9

2шт.

4

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

See Figure 02-09, Ref. 12

1шт.

5

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 03-12, Ref. 2

6шт.

6

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk); See Figure 02-09, Ref 19

2шт.

7

J937706

GASKET,0.79mm Thk

Oil Drain; See Figure 02-09, REF 6

1шт.

8

J330081

O-RING

See Figure 03-10, REF 3

1шт.

9

J330202

O-RING,11.3MM ID x 2.2 Thk

See Figure 04-03, Ref 5, 7

2шт.

10

J330478

O-RING,0.07" Thk x 0.676" ID

See Figure 04-03, REF 15

2шт.

11

J678603

O-RING,2.2mm Thk x 9.3mm ID

See Figure 02-09, Ref 18

2шт.

12

J678912

O-RING,2.2mm Thk x 11.3mm ID

See Figure 04 -03, Ref 9, 11

2шт.

13

J867043

SEAL,1.78mm Thk x 10.82mm ID

See Figure 03-05, REF 22

6шт.

14

J883284

O-RING,0.07" Thk x 2.364" ID, -36

See Figure 02-09, REF 22

1шт.

15

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm; See Figure 03-12

6шт.

16

J911941

GASKET

Turbocharger Mounting; Not Used In This Application

1шт.

17

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-21, REF 2

1шт.

18

J917892

GASKET,0.79mm Thk

Not Used In This Application

1шт.

19

J919369

GASKET,0.5mm Thk

See Figure 02-09, REF 2

1шт.

20

J939258

GASKET,1.21mm Thk

See Figure 02-19, REF 24

1шт.

21

J935171

SEALING WASHER

12 x 19 x 1,5 mm; Not Used In This Application

4шт.

22

J937479

MANIFOLD GASKET

Exhaust Manifold; See Figure 02-08, REF 3

6шт.

23

J944646

MANIFOLD GASKET

See Figure 02-08, REF 7

1шт.

24

J944647

GASKET

See Figure 02-08, REF 10

1шт.

25

J944683

GASKET

Breather; See Figure 02-17, REF 3

1шт.

26

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

See Figure 04-03

2шт.
