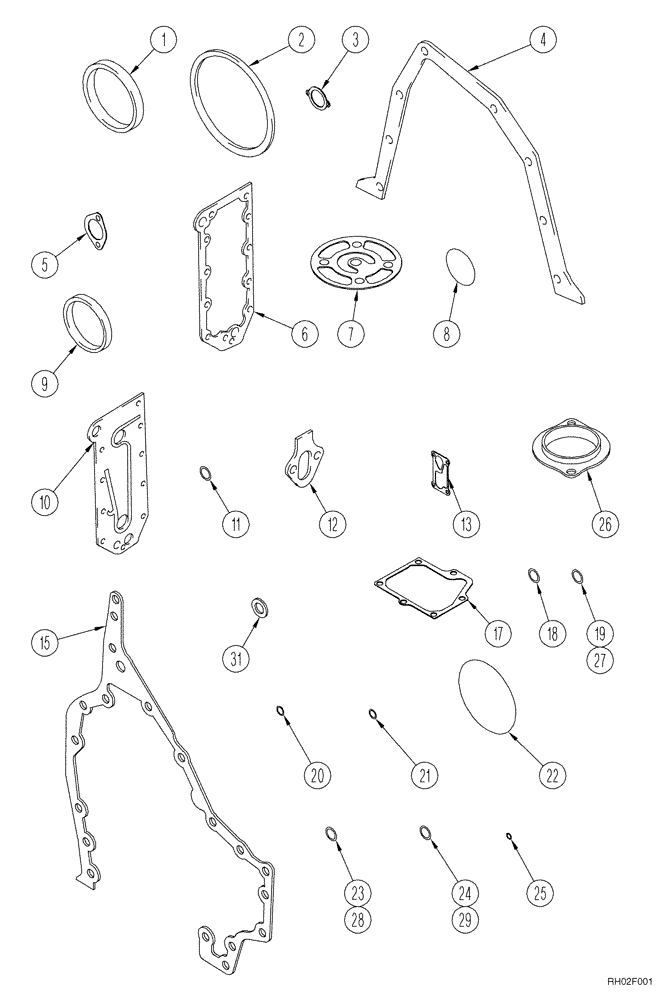

Запчасти Case CX330 (02-24) - GASKET KIT, CYLINDER BLOCK (02) - ENGINE

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

A77981

GASKET KIT

Incl. 1 - 31

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Cover; See Figure 02 -07, REF 13

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

See Figure 02 -19, REF 16; 02 -22, REF 2

6шт.

3

J945603

GASKET,1.65mm Thk

Water Inlet Mounting; See Figure 02 -19, REF 21

1шт.

4

J914301

GASKET

Rear Cover; See Figure 02 -20, REF 9

1шт.

5

J914302

GASKET

Suction Tube; See Figure 02 -13, REF 6

1шт.

6

J918174

GASKET,0.71mm Thk

Oil Cooler Mounting; See Figure 02 -12, REF 14

1шт.

7

J921605

GASKET

Filter Head; See Figure 02 -12, REF 12

1шт.

8

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID; See Figure 02 -19, REF 17

1шт.

9

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

See Figure 03 -11, REF 2

1шт.

10

J929011

GASKET,1.19mm Thk

Oil Cooler; See Figure 02 -12, REF 18

1шт.

11

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16"; See Figure 02 -12, Ref. 9

1шт.

12

J939258

GASKET,1.21mm Thk

Pump Mounting; See Figure 02 -19, REF 24

1шт.

13

J937367

GASKET

See Figure 02 -15, REF 5

1шт.

15

J944293

GASKET,1.01mm Thk

Gear Housing; See Figure 02 -07, REF 7

1шт.

17

87436828

GASKET

Breather; See Figure 02 -17, REF 3; Replaces J944683

1шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

See Figure 03 -04, Ref 13

2шт.

19

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

See Figure 03 -04, Ref 11

2шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Figure 02-15, Ref 9

1шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figure 02 -15, Ref 8

3шт.

22

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

See Figure 02 -06, Ref 3

1шт.

23

A77724

O-RING,3.05mm Thk x 23.62mm ID

See Figure 02 -12, REF 16

1шт.

24

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm; See Figure 02 -19, Ref. 35

2шт.

25

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Not Used In This Application

9шт.

26

J945603

GASKET,1.65mm Thk

Water Inlet; See Figure 02 -19, REF 21

1шт.

27

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

See Figure 03 -03, Ref 20

1шт.

28

J678912

O-RING,2.2mm Thk x 11.3mm ID

See Figure 04 -03, Ref 9, 11

2шт.

29

J330202

O-RING,11.3MM ID x 2.2 Thk

See Figure 04-03, Ref 5, 7

2шт.

30

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,5 mm; See Figure 03 -04, REF 21; Replaces J935171

4шт.

31

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

See Figure 04-03; Not Illustrated

2шт.
