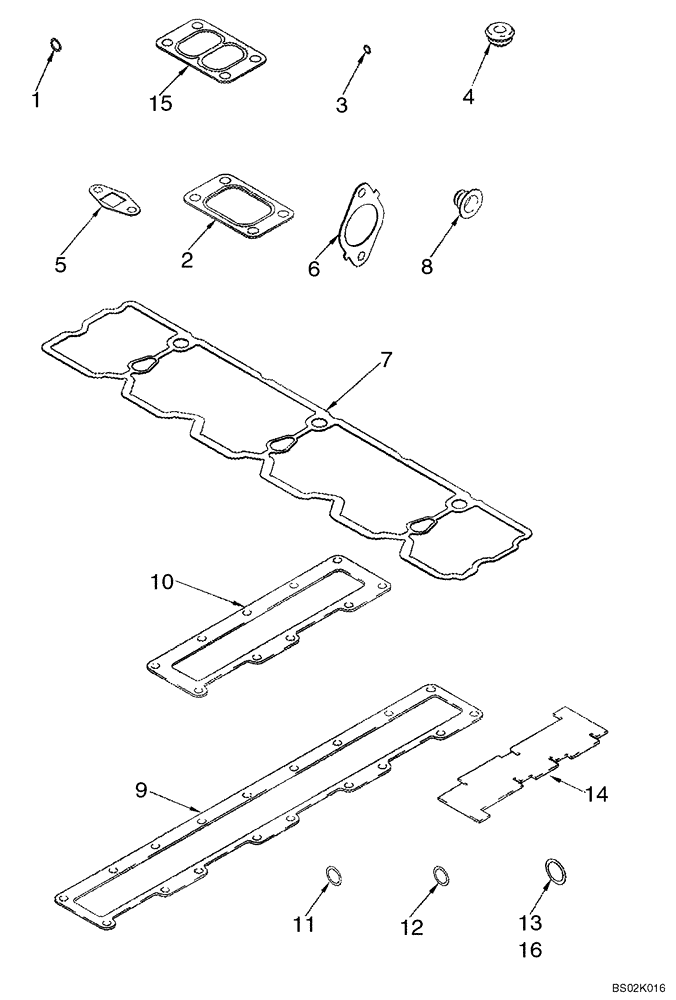

Запчасти Case CX330 (02-23) - GASKET KIT, VALVE GRIND (02) - ENGINE

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

A78018

GASKET KIT

Incl. 1 - 16

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

Injector; See Figure 03 - 05, REF 22

6шт.

2

J919369

GASKET,0.5mm Thk

Mounting, Turbocharger; See Figure 02 -09, REF 2

1шт.

3

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm, Nozzle; See Figure 03 -12, REF 3

6шт.

4

J990876

ISOLATOR

Valve Cover Screws; Includes Isolator and Screw; See Figure 02 -14, REF 3

5шт.

5

J937706

GASKET,0.79mm Thk

Oil Drain; See Figure 02 -09, REF 6

1шт.

6

J937479

MANIFOLD GASKET

Exhaust; See Figure 02 -08, REF 3

6шт.

7

J939284

GASKET

Valve Cover; See Figure 02 -14, REF 5

1шт.

8

J943888

SEAL

Intake Valve; See Figure 02 -16, REF 7; Replaces J991267

24шт.

9

J944646

MANIFOLD GASKET

Intake; See Figure 02 -08, REF 7

1шт.

10

J944647

GASKET

Connector Mounting; See Figure 02 -08, REF 10; Not Used In This Application

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 03-12, Ref. 2

6шт.

13

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk); See Figure 02-09, Ref 19

2шт.

14

87404692

GAUGE

Length

1шт.

15

J917892

GASKET,0.79mm Thk

Not Used In This Application

1шт.

16

J678603

O-RING,2.2mm Thk x 9.3mm ID

See Figure 02-09, Ref 12

2шт.
