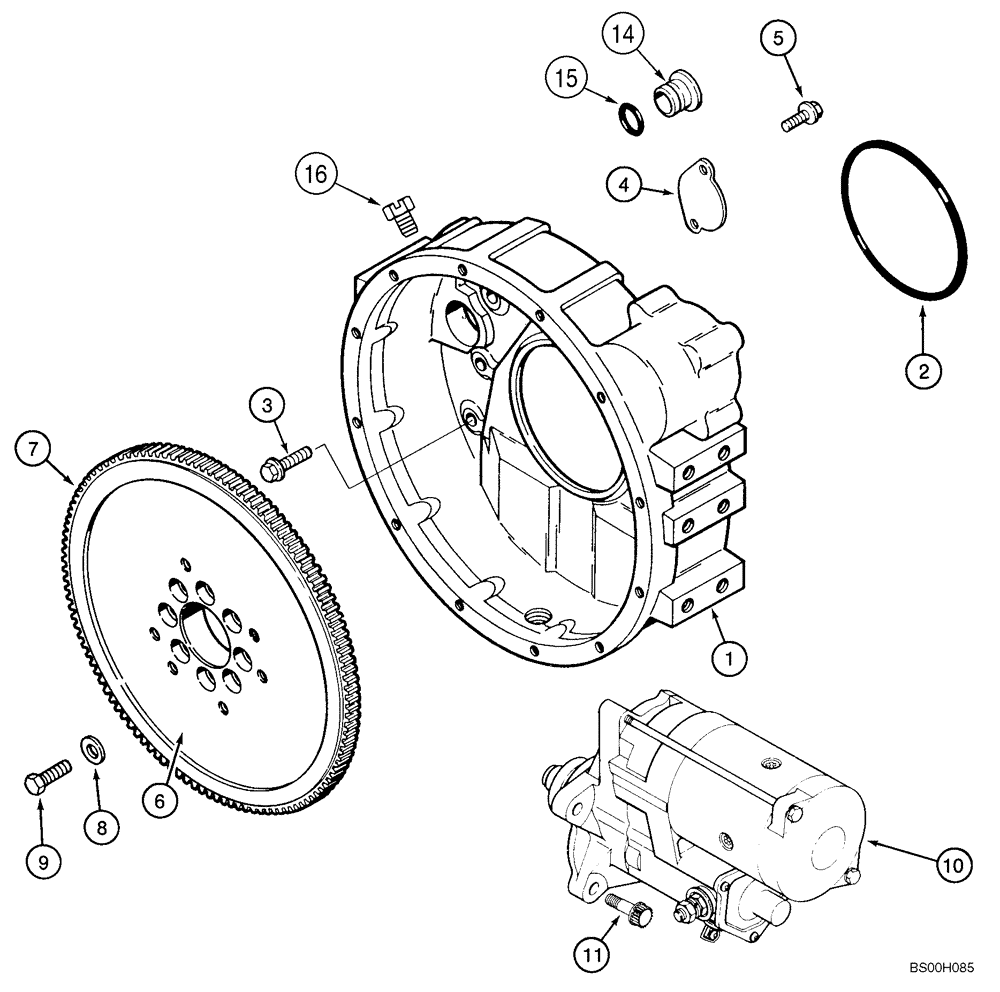

Запчасти Case CX330 (02-21) - FLYWHEEL AND HOUSING (02) - ENGINE

.

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

J906689

HOUSING

Flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

12шт.

4

J925234

PLATE

1шт.

5

J912072

SELF-TAP SCREW

2шт.

6

J937539

FLYWHEEL WITH GEAR

Incl. 7

1шт.

7

J902127

FLYWHEEL

1шт.

8

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

9

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

10

223900A2

STARTING MOTOR,24V, 7.5kW

Component Parts Not Available At Time Of Printing; See Figure 04-01

1шт.

10

223900A2R

REMAN-STARTER,24V, 7.5kW

Remanufactured Starting Motor

1шт.

10

223900A2C

CORE-STARTER,24V, 7.5kW

Return Number, Starting Motor

1шт.

11

J908321

12 PT SCREW

3шт.

12

J918892

SPACER

Not Illustrated

1шт.

14

J910248

PLUG

1шт.

15

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

16

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.
