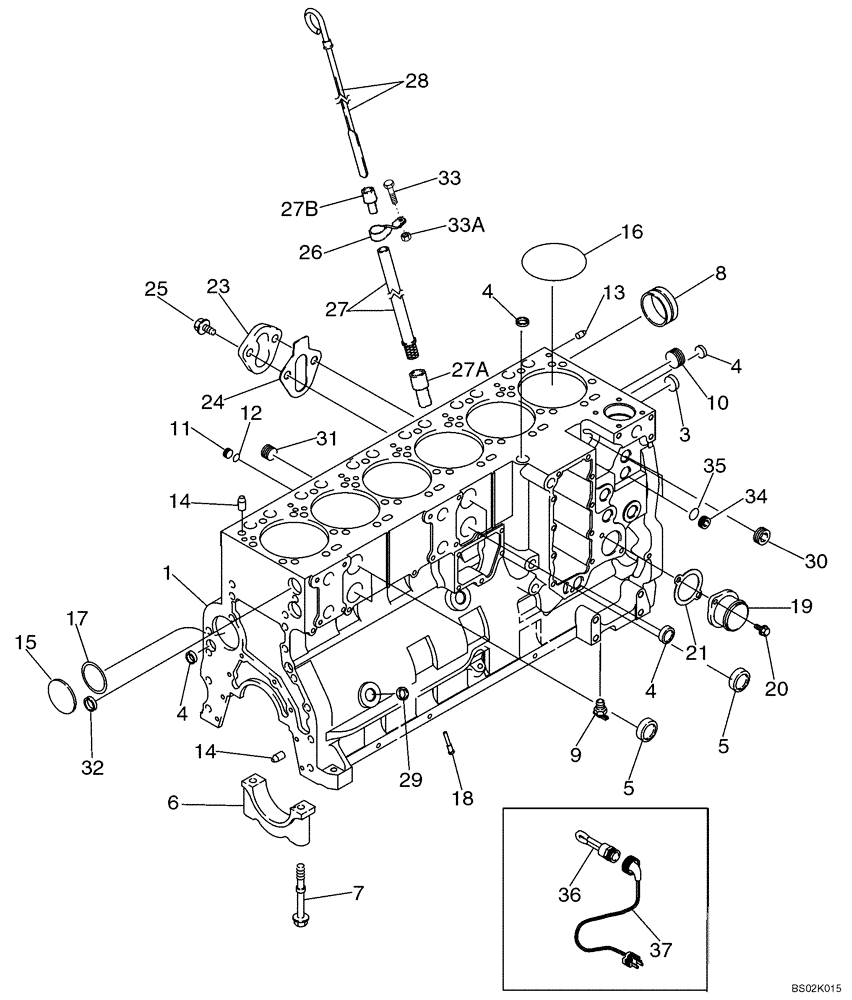

Запчасти Case CX330 (02-19) - CYLINDER BLOCK (02) - ENGINE

.

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

372231A2

Complete; Includes All Parts Except Fan, Air Cleaner, Muffler and Exhaust Pipe; For Service Order 409463A1 Basic Engine; Replaces 372231A1

1шт.

6830LBC

CORE-ENGINE

Return Number

1шт.

409463A1

BASIC ENGINE

8.3L, 24 Valve, 6 Cyl.

1шт.

84252738R

REMAN-BASIC ENGINE

1шт.

84252738C

CORE-BASIC ENGINE

Return Part Number

1шт.

J991308

SHORT ENGINE

Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

JR991308

REMAN-SHORT ENGINE

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number Engine, Short Block Cyl.

1шт.

1

87444195

BASIC BLOCK

Stripped, Also Order J800332 and J945967, Inc. 3 - 8; Replaces J939299

1шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Replaces J936058

7шт.

7

87444059

BOLT

M14 x 128; Replaces J916369

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

See Figure 02 -18, REF 9

7шт.

87444569

SERVICE KIT

Incl. 9 - 18; Replaces J800332

1шт.

9

217-103

COCK, DRAIN

1/4" PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm; Incl. 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

19

J913030

FITTING

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

1шт.

23

J948083

COVER

Oil Fill Cover

1шт.

24

J939258

GASKET,1.21mm Thk

1шт.

25

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

26

J916288

CLAMP

1шт.

27

87676099

PLASTIC-RUBBER TUBE,12 mm OD x 787.5 mm L

Replaces J285703

1шт.

27a

87366160

TUBE,.375" OD

Replaces A77645

1шт.

27b

J905802

FITTING,9.53 mm OD x 39 mm L

Oil Fill Tube

1шт.

28

J937419

DIPSTICK

1шт.

29

J943808

PLUG

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

2шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

32

J920443

PLUG

30 mm

2шт.

33

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

33a

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Includes 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm

1шт.

.

120 VOLT ENGINE BLOCK HEATER

1шт.

310493A1

KIT

Engine Block Heater; Incl. 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

Element

1шт.

37

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

.

240 VOLT ENGINE BLOCK HEATER

1шт.

310494A1

KIT

Engine Block Heater; Incl. 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

Element

1шт.

37

J913112

WIRE HARNESS

305 mm (12")

1шт.

A78019

ENGINE OVERHAUL KIT

Engine Overall; Not Illustrated

1шт.

38

A77971

PACKAGE, REPAIR

See Figure 02 -22

6шт.

39

87443389

BEARING LINER

Standard; See Figure 02 -22

6шт.

40

J934046

PISTON PIN,45mm OD x 91mm L

Piston; See Figure 02 -22

6шт.

41

J945930

BEARING SET

Standard; See Figure 02 -20

6шт.

42

J945929

THRUST BEARING

Thrust, Standard; See Figure 02 -20

1шт.

43

A78018

GASKET KIT

Valve Grind; See Figure 02 -23

1шт.

44

J943366

CYLINDER HEAD GASKET,2.11mm Thk

See Figure 02 -14, 02 -16

1шт.

45

87308050

GASKET,0.95mm Thk

Oil Pan, See Figure 02 -13

1шт.
