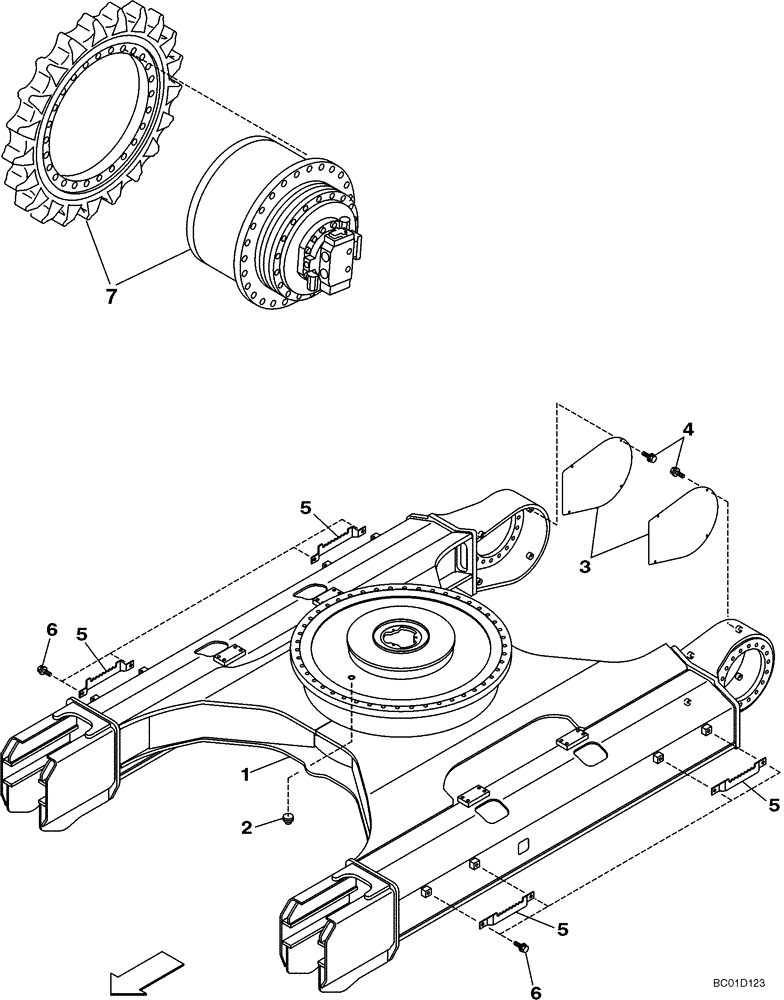

Запчасти Case CX330 (05-01) - UNDERCARRIAGE (11) - TRACKS/STEERING

1

KSA1274

FRAME

Replaces KSA1155

1шт.

2

157221A1

PLUG

1шт.

3

KSA1059

PROTECTOR

Motor

2шт.

4

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

8шт.

5

KSA1143

STEP

4шт.

6

105R020Y050R

BOLT

8шт.

7

KSA1101

MOTO-REDUCTION GEAR

Travel; See Figures 06-02, 06-03, 06-04, 06-04B; P.I.N. DAC0733101 - DAC0733141

2шт.

8

KSA1298

MOTO-REDUCTION GEAR

Travel; See Figure 06-02A, 06-03A, 06-04A, 06-04C; P.I.N. DAC0733142 And After

2шт.

9

KSA1322

MOTO-REDUCTION GEAR

Travel; See Figure 06-02B, 06-03B, 06-04D, 06-04E

2шт.
