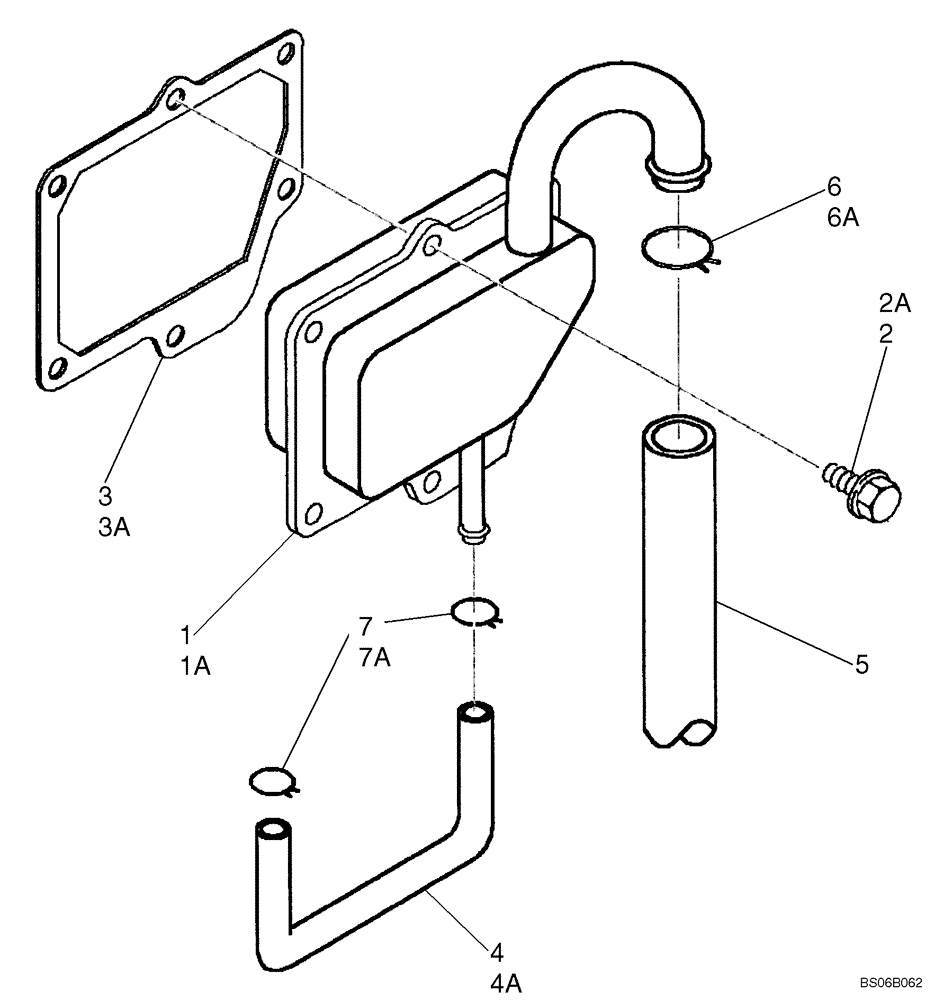

Запчасти Case CX330 (02-17) - CRANKCASE, BREATHER (02) - ENGINE

-

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

J937652

BREATHER

1шт.

1a

87437062

BREATHER

1шт.

2

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Used with J937652 Breather

6шт.

2a

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

Used With 87437062 Breather

6шт.

3

J944683

GASKET

No Longer Available, Order 87436828

1шт.

3a

87436828

GASKET

1шт.

4

J948068

HOSE,66.50 mm, SAE 30R7

Used With J937652 Breather

1шт.

4a

87437060

HOSE

Used With 87437062 Breather

1шт.

5

J944714

TUBE,320.00 mm

1шт.

6

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

Used with J937652 Breather

1шт.

6a

214-1314

HOSE CLAMP,#14, 7/8", Spring

Used with 87437062 Breather

1шт.

7

214-1310

HOSE CLAMP,#10, 5/8", Spring

Used with J937652 Breather

2шт.

7a

214-1315

HOSE CLAMP,#15, 15/16", Spring

Used with 87437062 Breather

2шт.
