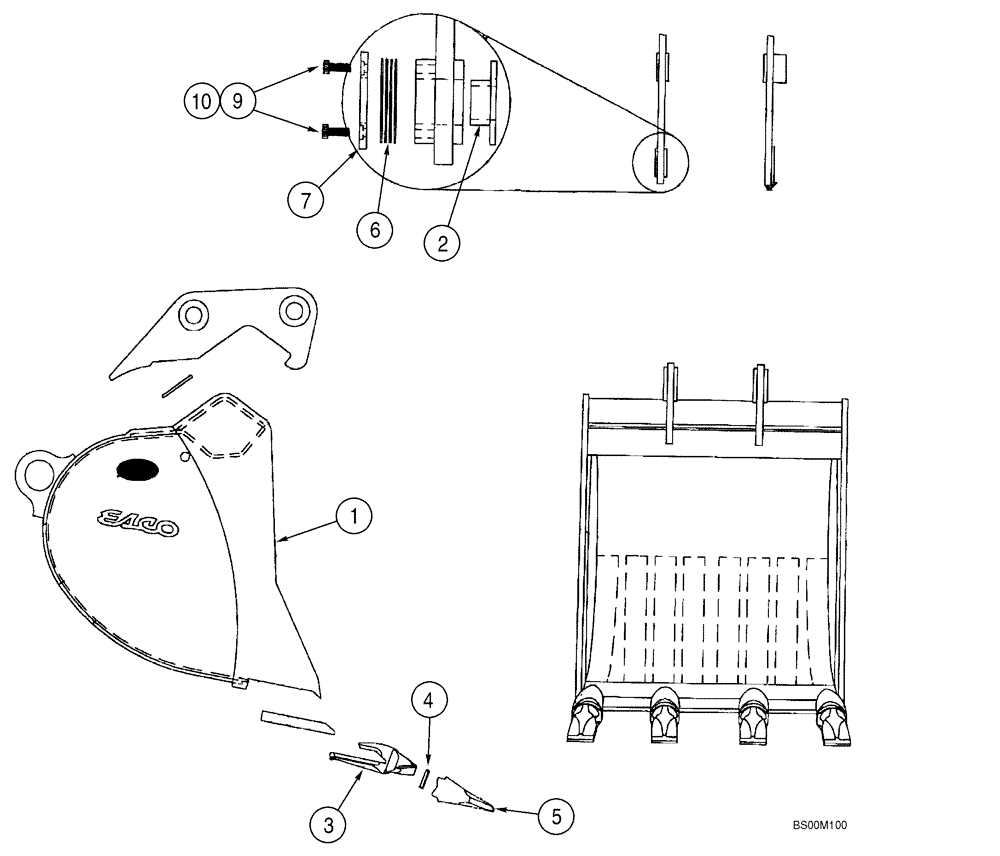

Запчасти Case CX330 (09-53) - BUCKETS, ESCO - GENERAL PURPOSE BUCKETS (09) - CHASSIS

1

442280A1

BUCKET

0.97 cu m (1.26 cu yd), With 4 Teeth

1шт.

1

442281A1

BUCKET

1.22 cu m (1.59 cu yd), With 4 Teeth

1шт.

1

442282A1

BUCKET

1.48 cu m (1.92 cu yd), With 5 Teeth

1шт.

1

442283A1

BUCKET

1.73 cu m (2.25 cu yd), With 5 Teeth

1шт.

1

442284A1

BUCKET

1.99 cu m (2.59 cu yd), With 6 Teeth

1шт.

1

442285A1

BUCKET

2.25 cu m (2.93 cu yd), With 6 Teeth

1шт.

2

443467A1

BUSHING

1шт.

3

254091A1

ADAPTER

Tooth

4-6шт.

4

254098A1

BUCKET TOOTH KEY

4-6шт.

5

254093A1

TOOTH

4-6шт.

6

378635A1

SHIM

3шт.

7

378636A1

PLATE

1шт.

8

378637A1

PIN

Not Illustrated

2шт.

9

892-16016

LOCK WASHER,M16, Hvy

4шт.

10

863-16055

HEX SOC SCREW,M16 x 55mm, Cl 12.9

4шт.

443468A1

KIT

Incl. 2, 6 - 10

1шт.
