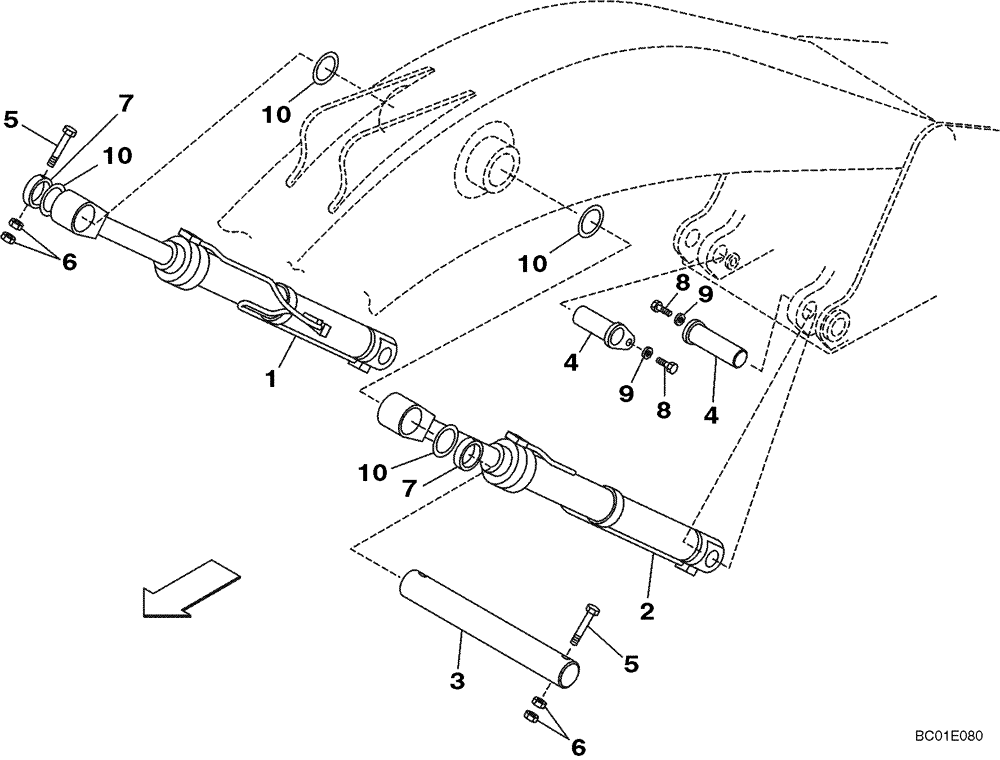

Запчасти Case CX330 (09-45) - BOOM CYLINDER - MOUNTING (09) - CHASSIS

1

KSV1393

HYDRAULIC CYLINDER

Boom, Right Hand; Models Without Load Hold; See Figure 08-80

1шт.

1

KSV1454

HYDRAULIC CYLINDER

Boom, Right Hand; Models With Load Hold; See Figure 08-81

1шт.

2

KSV1394

HYDRAULIC CYLINDER

Boom, Left Hand; Models Without Load Hold; See Figure 08-82

1шт.

2

KSV1455

HYDRAULIC CYLINDER

Boom, Left Hand; Models With Load Hold; See Figure 08-83

1шт.

3

KSV1416

PIN

1шт.

4

KSV1415

PIN

2шт.

5

514-1404

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

2шт.

6

829-13424

NUT,M24 x 2, Cl 10

4шт.

7

KSV1352

RING, LOCKING

RING, LOCK

2шт.

8

102R020Y035R

BOLT

2шт.

9

KTV1185

SPACER

2шт.

10

162102A1

SHIM

4шт.
