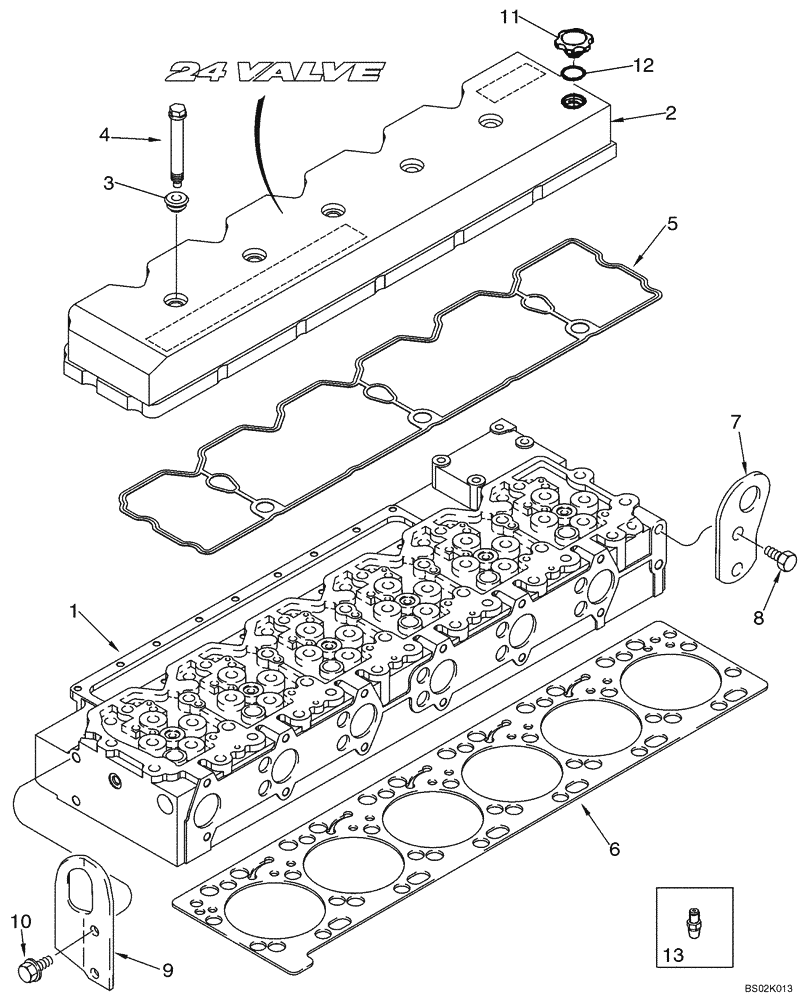

Запчасти Case CX330 (02-14) - CYLINDER HEAD - COVER (02) - ENGINE

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

REF

INSTRUCTION

Head, Cylinder; See Figure 02 -16

1шт.

2

J938446

VALVE COVER

1шт.

3

J990876

ISOLATOR

Includes Ref 4 Screw

5шт.

4

NSS

NOT SOLD SEPARAT

SCREW; Included With Ref 3 Isolator

5шт.

5

J939284

GASKET

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

7

J944239

BRACKET

Front

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

J944290

BRACKET

Rear

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

11

87429619

FILLER CAP

Incl. 12; Replaces J937759

1шт.

12

238-5123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

13

J943670

FITTING

Vent

1шт.
