(09-27) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER

Запчасти Case CX330 (09-27) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS

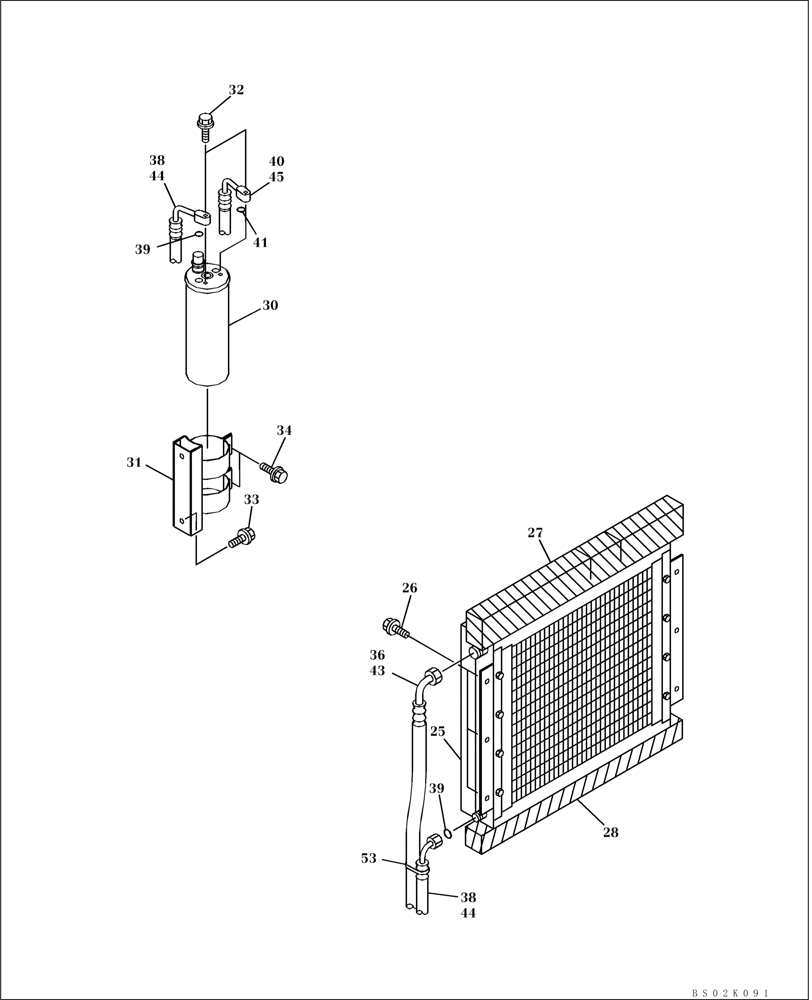

Схема запчастей Case CX330 - (09-27) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS
40
45
27
38
39
34
36
38
44
53
30
32
43
28
44
39
31
33
25
26
41
bs02k091
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

25

KHR2989

CONDENSER

See Figure 09-27A

1шт.

26

167182A1

BOLT,Sems, M8 x 25mm

6шт.

27

KSR0918

SEAL

1шт.

28

KTR0530

SEAL

1шт.

30

KHR3751

RECEIVER-DRYER

Replaces 167528A1 (includes high/low press switch)

1шт.

31

159635A1

SUPPORT

1шт.

32

162043A1

BOLT,Spcl, M6

2шт.

33

167182A1

BOLT,Sems, M8 x 25mm

2шт.

34

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

36

KHR3920

HOSE

1шт.

38

KHR3087

HOSE

Incl. 39

1шт.

39

169054A1

O-RING

2шт.

40

KHR3088

HOSE

Incl. 41

1шт.

41

169054A1

O-RING

2шт.

43

158069A1

PLASTIC-RUBBER TUBE

1шт.

44

157768A1

PLASTIC-RUBBER TUBE

1шт.

45

151175A1

PLASTIC-RUBBER TUBE

1шт.

53

150496A1

MOUNTING CLIP

1шт.
