Запчасти Case CX330 (02-13) - OIL PUMP AND OIL PAN (02) - ENGINE

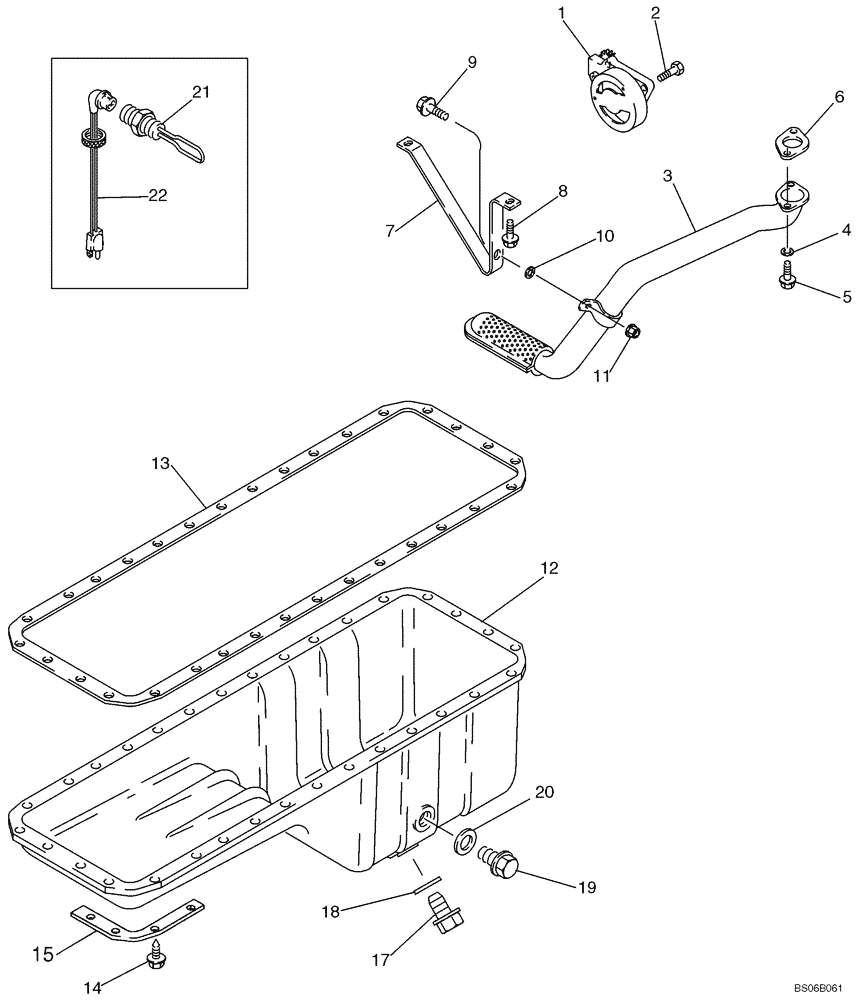

Схема запчастей Case CX330 - (02-13) - OIL PUMP AND OIL PAN (02) - ENGINE
10
15
3
13
7
5
17
6
4
9
12
8
18
21
2
19
1
11
22
14
20

Артикул

Название

Примечание

Количество

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

J948072

ENGINE OIL PUMP

1шт.

JR948072

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

JC948072

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

J900677

BOLT,Hex

4шт.

3

J921719

TUBE

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

Replaces J901865

1шт.

10

J910960

WASHER

1шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

12

J933347

ENGINE OIL PAN

Used With 372231A1 Engine

1шт.

12

J914015

ENGINE OIL PAN

Used With 372231A2 Engine

1шт.

12

87351053

ENGINE OIL PAN

With Attached Clamping Plates

1шт.

13

87308050

GASKET,0.95mm Thk

Oil Pan; Replaces J938160

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

Used with J933347 Oil Pan

32шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

Used with J914015 Oil Pan

32шт.

15

87414461

SUPPORT

Used With J933347 and J915015 Oil Pans

4шт.

16

87361945

STRAP

Not Illustrated; Used With J933347 and J915015 Oil Pans

2шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924148

PLUG,M22 x 1.5

Oil Pan Heater Hole

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77999

GASKET KIT

Oil Pan; Incl. 6, 18, 19, 20

1шт.

ENGINE OIL HEATER

1шт.

A77580

SERVICE KIT

Heater; 120 V; Incl. 21, 22; Also Order J902425, REF 20

1шт.

21

NSS

NOT SOLD SEPARAT

Element

1шт.

22

196466A1

ELECTRIC CABLE

1шт.

A77666

SERVICE KIT

Heater; 240 V; Incl. 21, 22; Also Order J902425, REF 20

1шт.

21

NSS

NOT SOLD SEPARAT

Element

1шт.

22

J905114

ELECTRIC CABLE

1шт.

Выбрано товаров: 34
