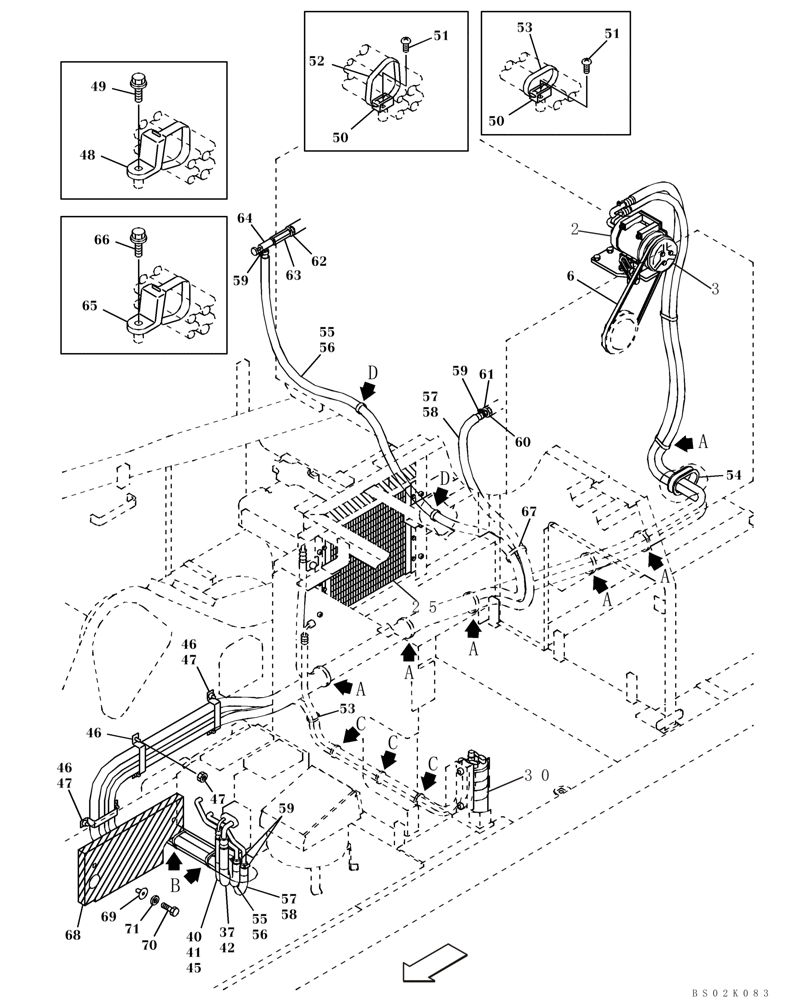

Запчасти Case CX330 (09-25) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS

2

KHR3241

COMPRESSOR

See Figure 09-26

1шт.

2

KHR3241R

REMAN-A/C COMPRESSOR

CX330 CASE CRAWLER EXCAVATOR (NORTH AMERICA)

1шт.

2

KHR3241C

CORE-A/C COMPRESSOR

Return Number

1шт.

3

KHR3246

CLUTCH

See Figure 09-26

1шт.

6

165843A1

V-BELT

1шт.

25

KHR2989

CONDENSER

See Figure 09-27. 09-27A

1шт.

30

KHR3751

RECEIVER-DRYER

See Figure 09-27, Replaces 167528A1 (includes high/low press switch)

1шт.

37

KHR3921

HOSE

1шт.

40

KHR3088

HOSE

Incl. 41; See Figure 09-27

1шт.

41

169054A1

O-RING

2шт.

42

KBR0668

PLASTIC-RUBBER TUBE

1шт.

45

151175A1

PLASTIC-RUBBER TUBE

1шт.

46

159037A1

MOUNTING CLIP

3шт.

47

150469A1

FLANGE NUT

6шт.

48

KHR2581

CLAMP

6шт.

49

KHJ1215

BOLT,Spcl

6шт.

50

150860A1

COLLAR

5шт.

51

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

52

150071A1

MOUNTING CLIP

2шт.

53

150496A1

MOUNTING CLIP

4шт.

54

KEJ0421

GROMMET

1шт.

55

150813A1

HOSE

1шт.

56

151548A1

PLASTIC-RUBBER TUBE

1шт.

57

KNR0327

HOSE

Replaces 150827A1

1шт.

58

KMR0822

PLASTIC-RUBBER TUBE

Replaces KMR0848

1шт.

59

157271A1

CLIP

4шт.

60

151582A1

BUSHING

1шт.

61

159655A1

ELBOW

1шт.

62

151582A1

BUSHING

1шт.

63

151110A1

BUSHING

1шт.

64

152664A1

VALVE

Stop

1шт.

65

KHR2581

CLAMP

2шт.

66

KHJ1215

BOLT,Spcl

2шт.

67

150071A1

MOUNTING CLIP

2шт.

68

KTR0531

FOAM INSULATION

1шт.

69

KHH0358

RETAINER

2шт.

70

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

73

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
