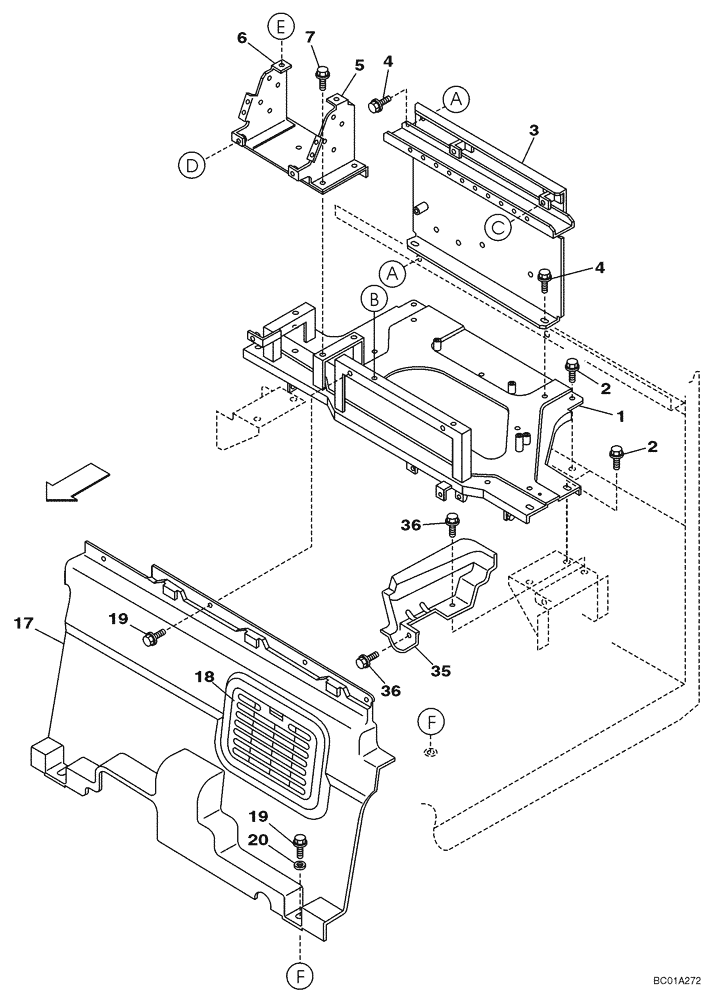

Запчасти Case CX330 (09-14) - OPERATORS COMPARTMENT (09) - CHASSIS

1

KHN2227

BRACKET

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

3

KHN2810

BRACKET

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

5

KHN2331

BRACKET

1шт.

6

KHN2330

BRACKET

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

17

KHN2240

PADDING

P.I.N.DAC0733101 - DAC733254

1шт.

17

KHN3595

PADDING

P.I.N. 0733255 And After

1шт.

18

KHN2241

COVER

P.I.N.DAC0733101 - DAC733254

1шт.

18

KHN3596

COVER

P.I.N. 0733255 And After

1шт.

19

KHN2309

BOLT,Spcl

5шт.

20

KHN2312

WASHER

2шт.

35

KHN2395

PADDING

P.I.N.DAC0733101 - DAC733254

1шт.

35

KHN3599

PADDING

P.I.N. 0733255 And After

1шт.

36

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.
