(09-12) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL

Запчасти Case CX330 (09-12) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL (09) - CHASSIS

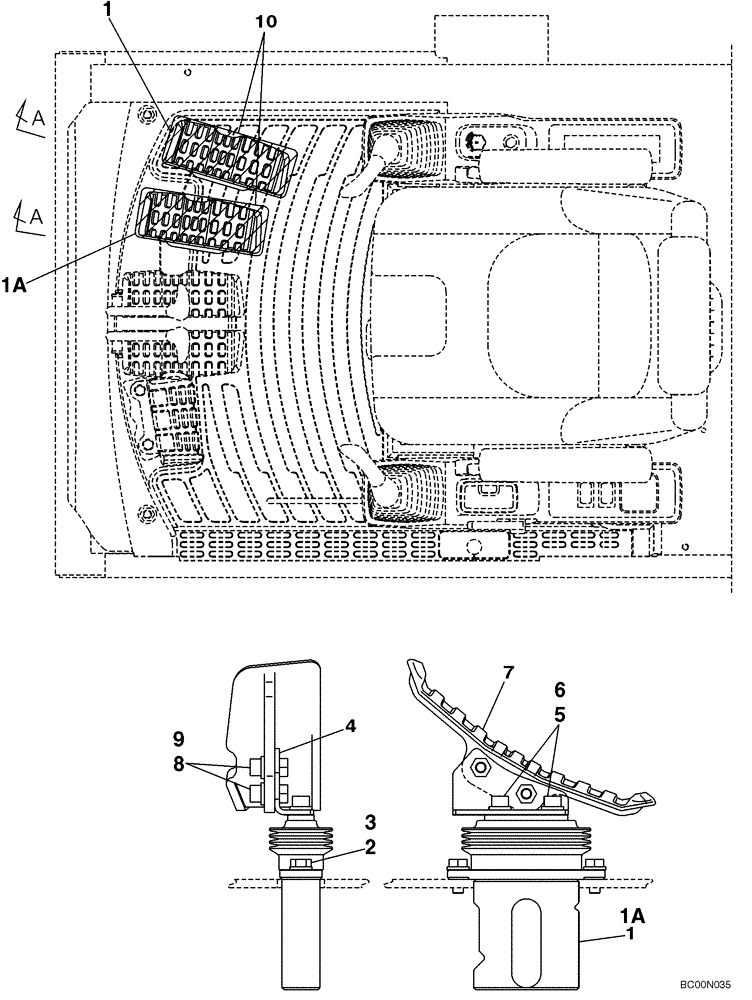

Схема запчастей Case CX330 - (09-12) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL (09) - CHASSIS
1a
1a
10
7
2
1
6
8
9
1
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

MODELS WITH AUXILIARY HYDRAULICS

1шт.

1

KRJ5864

CONTROL BLOCK

Single Pedal Travel Control; See Figure 08-74

1шт.

1a

KRJ5864

CONTROL BLOCK

Auxiliary Control; See Figure 08-74

1шт.

2

166052A1

BOLT

M10 x 25; 10.9

4шт.

3

150604A1

WASHER

4шт.

4

KHJ1643

BRACKET

2шт.

5

165404A1

BOLT,Hex Skt, M10 x 20mm

4шт.

6

150604A1

WASHER

4шт.

7

KHJ1629

PEDAL

2шт.

8

KHJ1820

BOLT,Hex Skt Hd

4шт.

9

150604A1

WASHER

4шт.

10

163782A1

SKIRT COVER

2шт.
