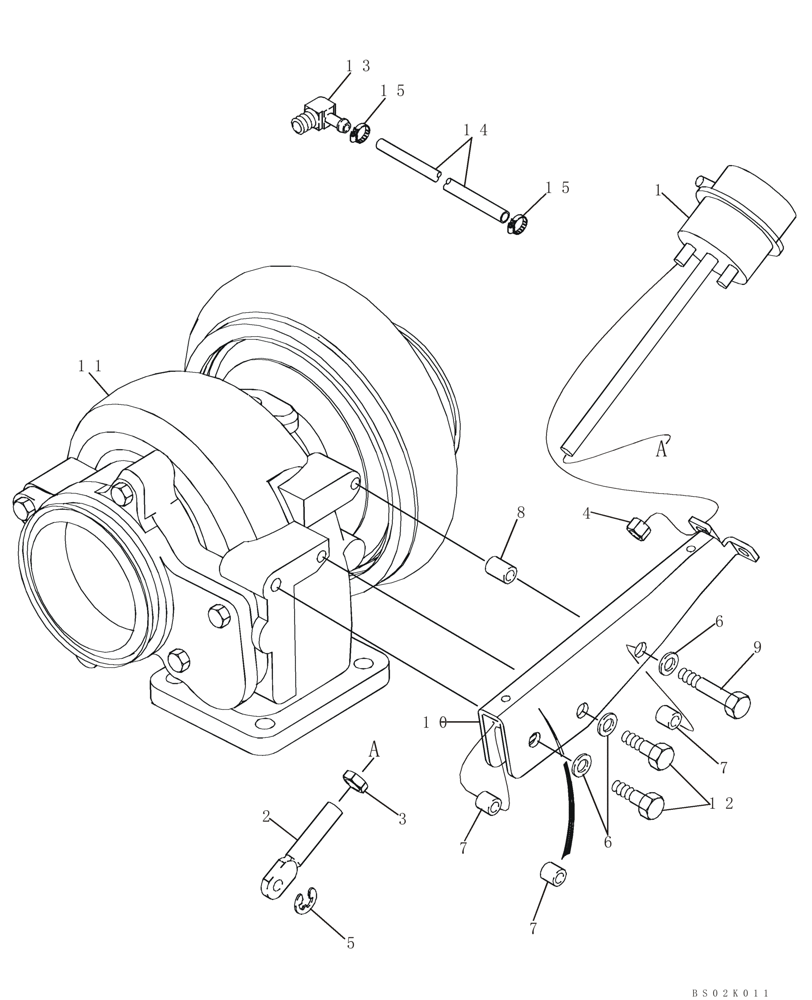

Запчасти Case CX330 (02-11) - WASTEGATE ACTUATOR (02) - ENGINE

*

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

87403716

KIT

Turbocharger Assy; Incl. 1 - 15, Also Includes 1 - 22, Figure 02 -10

1шт.

87403719

REMAN-TURBOCHARGER

Turbocharger Assy; Incl. 1 - 15, Also Includes 1 - 22, Figure 02 -10

1шт.

87403771

CORE-TURBOCHARGER

Return Number

1шт.

1

J593678

ACTUATOR

1шт.

1

J593678R

REMAN-SOLENOID

Cummins - ACTUATOR - Wastegate

1шт.

1

J593678C

CORE-SOLENOID

Return Number, ACTUATOR

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

2шт.

5

J528221

CIRCLIP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

13.6 mm

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

19 mm

1шт.

9

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

10

J533328

SUPPORT

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.

12

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

J528121

ELBOW

1шт.

14

87403744

HOSE,6.40 mm ID x 1862.00 mm

.

1шт.

15

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1/4 - 5/8

2шт.
