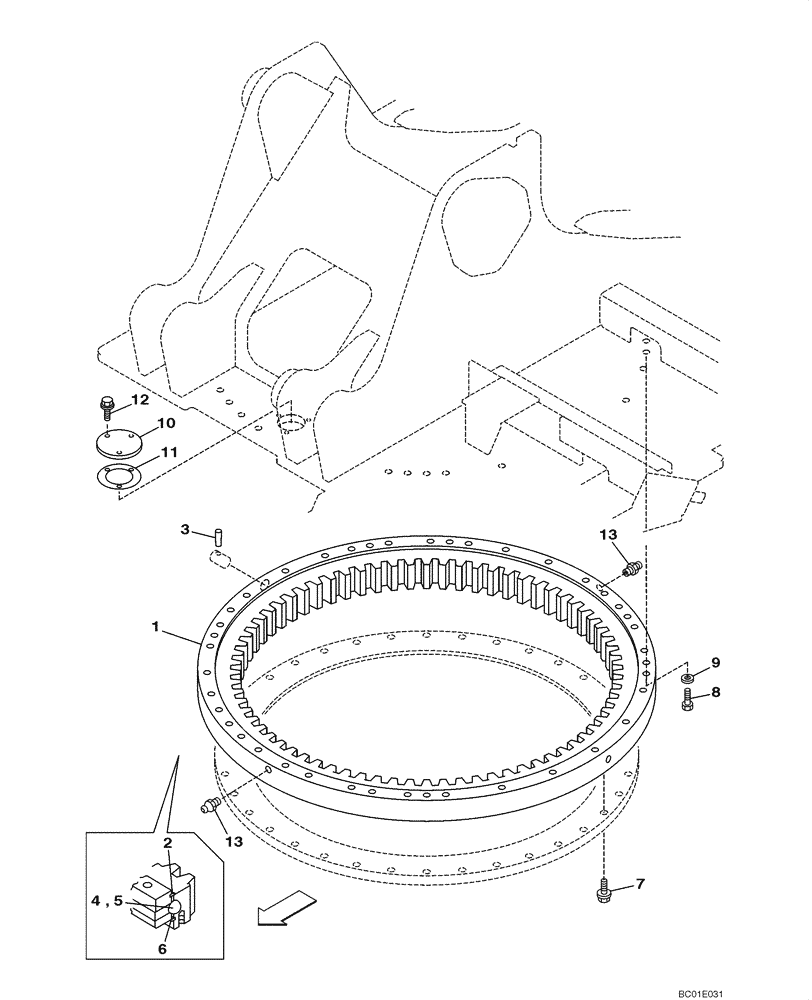

Запчасти Case CX330 (09-01) - TURNTABLE BEARING (09) - CHASSIS

1

KSB10070

CROWN WHEEL

Incl. 2 - 6; Replaces KSB0851

1шт.

2

KTB0854

SEALING RING

Incl. 3

1шт.

2

KTB0854

SEALING RING

1шт.

3

162549A1

LINCH PIN

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing, Ball

93шт.

5

NSS

NOT SOLD SEPARAT

Spacer

93шт.

6

KTB0855

SEALING RING

1шт.

7

166477A1

BOLT,Sems, M24 x 90mm

46шт.

8

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

41шт.

9

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

41шт.

10

158929A1

LID

1шт.

11

158930A1

CORK SEAL

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

13

153630A1

LUBE NIPPLE

2шт.
