(08-91) - HIGH PRESSURE PUMP - SOLENOID VALVE (STANDARD)

Запчасти Case CX330 (08-91) - HIGH PRESSURE PUMP - SOLENOID VALVE (STANDARD) (08) - HYDRAULICS

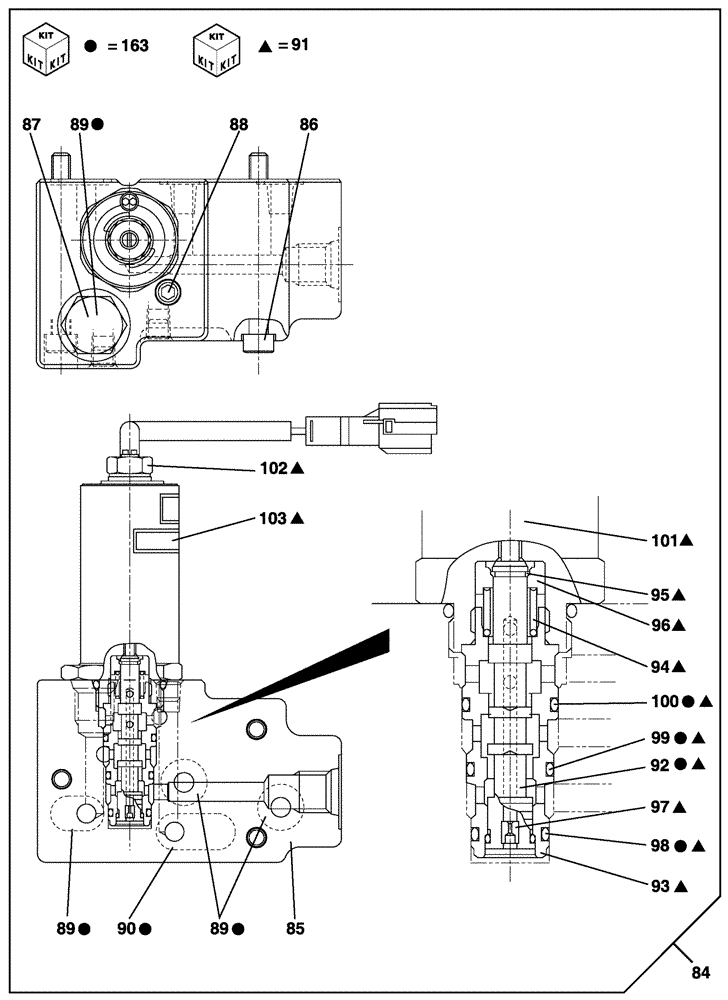

Схема запчастей Case CX330 - (08-91) - HIGH PRESSURE PUMP - SOLENOID VALVE (STANDARD) (08) - HYDRAULICS
99
97
96
100
89
98
90
91
91
91
91
91
91
91
94
88
163
91
101
163
89
91
163
85
91
91
89
163
91
93
91
86
163
95
87
163
92
163
163
103
163
84
102
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KSJ2851

PUMP, HYDRAULIC

Includes Parts On Figures 08-89 - 08-92

1шт.

KSJ15460R

REMAN-HYD PUMP

New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.

1шт.

KSJ15460C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84

160160A1

VALVE SECTION

Incl. 85 - 103

1шт.

85

NSS

NOT SOLD SEPARAT

Case

1шт.

86

862-6060

HEX SOC SCREW,M6 x 60mm, Cl 12.9

3шт.

87

155496A1

PLUG

1шт.

88

LK00003

PLUG

3шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

90

154483A1

O-RING

1шт.

91

LJ00684

SOLENOID VALVE

Incl. 92 - 103

1шт.

92

NSS

NOT SOLD SEPARAT

Spool, Valve

1шт.

93

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

94

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

95

NSS

NOT SOLD SEPARAT

Ring

1шт.

96

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

97

NSS

NOT SOLD SEPARAT

Orifice

1шт.

98

155203A1

O-RING

1шт.

99

155204A1

O-RING

1шт.

100

160652A1

O-RING

1шт.

101

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

102

NSS

NOT SOLD SEPARAT

Nut

1шт.

103

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

163

LZ006740

SEAL KIT

Incl. 89, 90, 98 - 100, Also Includes Figure 08-89, Ref 63 - 73, Figure 08-90, Ref 188 - 190, Figure 08-92, Ref 138 - 150

1шт.
