(08-90) - HIGH PRESSURE PUMP - PUMP, PILOT CONTROL (STANDARD)

Запчасти Case CX330 (08-90) - HIGH PRESSURE PUMP - PUMP, PILOT CONTROL (STANDARD) (08) - HYDRAULICS

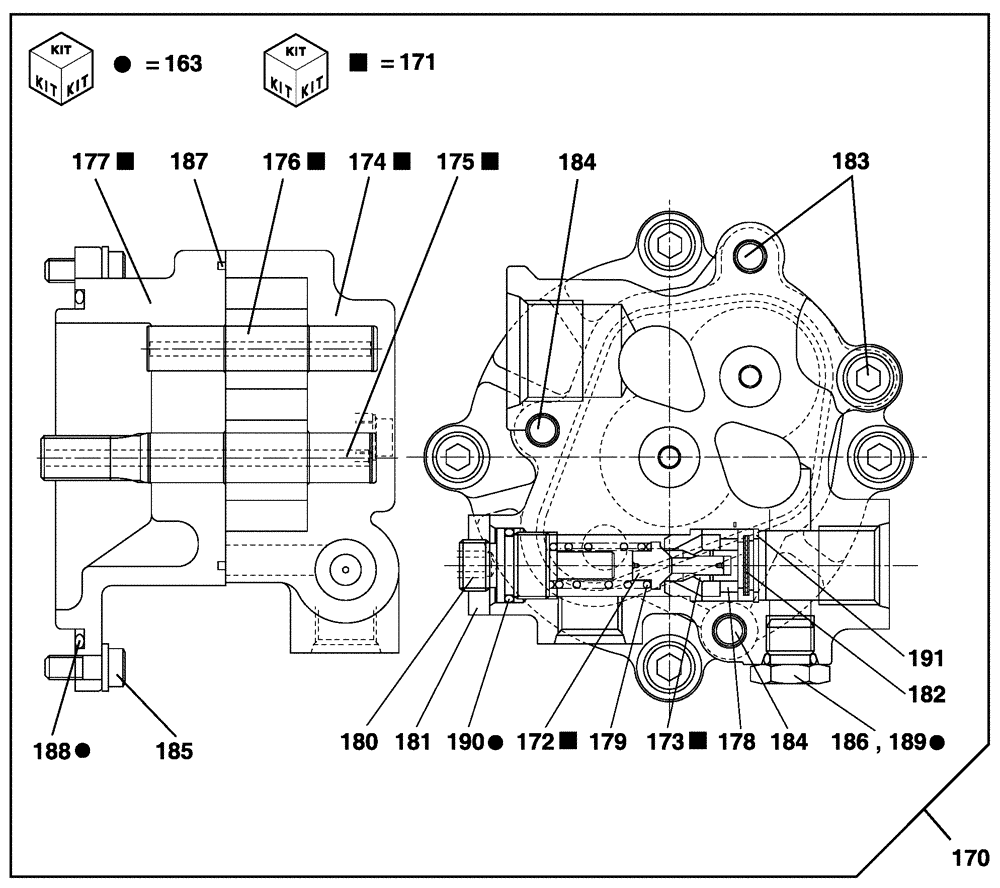

Схема запчастей Case CX330 - (08-90) - HIGH PRESSURE PUMP - PUMP, PILOT CONTROL (STANDARD) (08) - HYDRAULICS
171
171
191
171
174
163
171
163
178
175
189
163
183
184
185
181
171
180
187
177
172
186
173
188
176
179
170
171
190
182
163
171
184
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KSJ2851

PUMP, HYDRAULIC

Includes Parts On Figures 08-89 - 08-92

1шт.

KSJ15460R

REMAN-HYD PUMP

New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.

1шт.

KSJ15460C

CORE-HYDRAULIC PUMP

Return Number

1шт.

163

LZ006740

SEAL KIT

Incl. 188 - 190, Also Includes Figure 08-89, Ref 63 - 73, Figure 08-91, Ref 89, 90, 98 - 100, Figure 08-92, Ref 138 - 150

1шт.

170

LJ01270

HYDRAULIC PUMP

Incl. 170 - 191

1шт.

171

LC00256

HOUSING

Incl. 172 - 177

1шт.

172

NSS

NOT SOLD SEPARAT

Poppet

1шт.

173

NSS

NOT SOLD SEPARAT

Seat

1шт.

174

NSS

NOT SOLD SEPARAT

Case, Gear

1шт.

175

NSS

NOT SOLD SEPARAT

Gear

1шт.

176

NSS

NOT SOLD SEPARAT

Gear

1шт.

177

NSS

NOT SOLD SEPARAT

Case

1шт.

178

LE01175

RING

1шт.

179

LG00536

SPRING

1шт.

180

LF00043

ADJUSTER

1шт.

181

163662A1

LOCK NUT

1шт.

182

163663A1

FILTER

1шт.

183

LA00593

BOLT,Hex Skt, M8 x 50mm, Cl 12.9

M8 x 50

2шт.

184

LA00594

BOLT,Hex Skt, M8 x 65mm, Cl 12.9

M8 x 60

2шт.

185

163666A1

FLANGE BOLT

4шт.

186

155496A1

PLUG

1шт.

187

163667A1

SEALING RING

1шт.

188

154713A1

O-RING

1шт.

189

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

190

154483A1

O-RING

1шт.

191

163668A1

RING, LOCKING

RING, LOCK

1шт.
