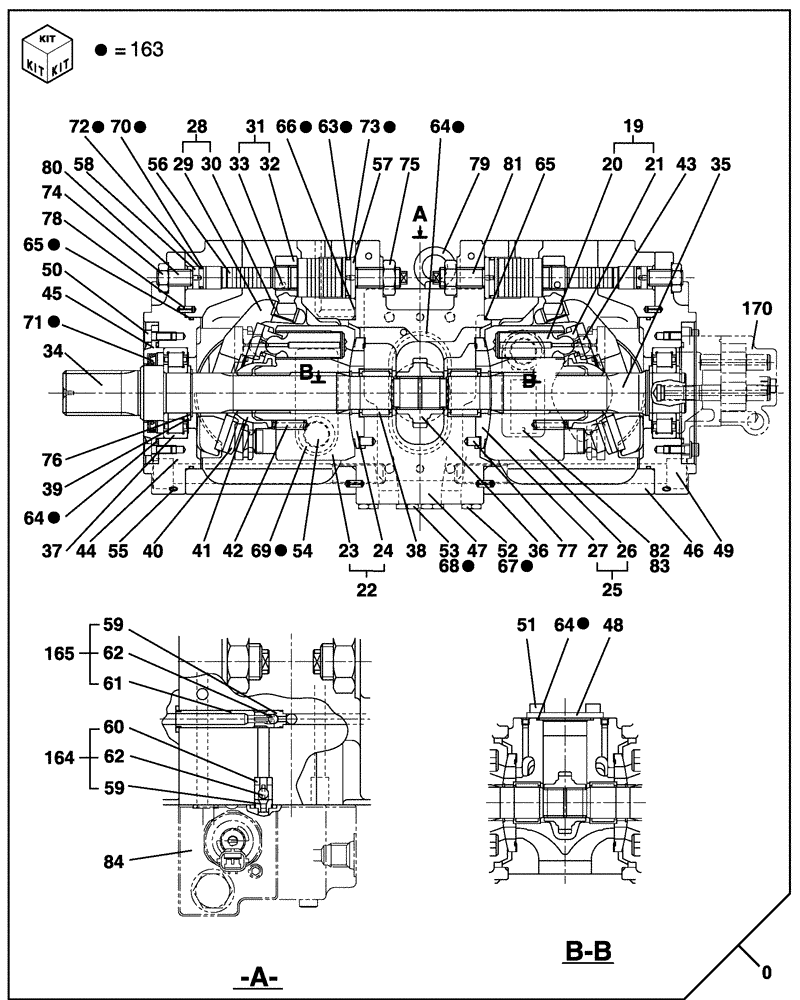

Запчасти Case CX330 (08-89) - HIGH PRESSURE PUMP (STANDARD) (08) - HYDRAULICS

0

KSJ2851

PUMP, HYDRAULIC

Includes Parts On Figures 08-89 - 08-92

1шт.

KSJ15460R

REMAN-HYD PUMP

New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.

1шт.

KSJ15460C

CORE-HYDRAULIC PUMP

Return Number

1шт.

19

TJ00071

PISTON

Incl. 20, 21

2шт.

20

NSS

NOT SOLD SEPARAT

Piston

9шт.

21

NSS

NOT SOLD SEPARAT

Shoe

9шт.

22

LJ01118

BARREL

Incl. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

Plate

1шт.

25

LJ01119

BARREL

Incl. 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

27

NSS

NOT SOLD SEPARAT

Plate

1шт.

28

LR012710

VALVE POPPET

Incl. 29, 30

2шт.

29

NSS

NOT SOLD SEPARAT

Plate

1шт.

30

NSS

NOT SOLD SEPARAT

Bushing

1шт.

31

TA00050

SPECIAL PIN

Incl. 32, 33

2шт.

32

NSS

NOT SOLD SEPARAT

Pin

1шт.

33

NSS

NOT SOLD SEPARAT

Pin

1шт.

34

LB00925

DRIVE SHAFT

1шт.

35

LB00926

DRIVE SHAFT

1шт.

36

TC00021

GEAR

1шт.

37

TB00026

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

38

TB00025

NEEDLE BEARING,33 mm ID x 47 mm OD x 32 mm

2шт.

39

156963A1

SPACER

3шт.

40

TR00047

PLATE

2шт.

41

169288A1

BUSHING

2шт.

42

TG00025

SPRING

18шт.

43

160113A1

PLATE

2шт.

44

LS002640

SPOOL

2шт.

45

TW00032

COVER

1шт.

46

160604A1

HOUSING

2шт.

47

LS00235

BLOCK

1шт.

48

NSS

NOT SOLD SEPARAT

Cover

1шт.

49

167078A1

BOLT,M8 x 40mm, Cl 12.9

M8 x 40; 12.9

8шт.

50

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

51

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

4шт.

52

155496A1

PLUG

2шт.

53

TLM0023

PLUG

2шт.

54

155471A1

PLUG

4шт.

55

LK00003

PLUG

32шт.

56

TJ00066

PISTON

2шт.

57

160115A1

STOP

2шт.

58

160116A1

STOP

2шт.

59

NSS

NOT SOLD SEPARAT

Seat

2шт.

60

NSS

NOT SOLD SEPARAT

Stopper

1шт.

61

NSS

NOT SOLD SEPARAT

Stopper

1шт.

62

NSS

NOT SOLD SEPARAT

Ball

2шт.

63

154553A1

O-RING

2шт.

64

154713A1

O-RING

2шт.

65

154805A1

O-RING

4шт.

66

154455A1

O-RING

16шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

68

154475A1

O-RING

2шт.

69

154503A1

O-RING

4шт.

70

154489A1

O-RING

2шт.

71

TE00812

OIL SEAL

1шт.

72

153970A1

BACK-UP RING

2шт.

73

154017A1

BACK-UP RING

2шт.

74

164R016VR

NUT

M16; 10

2шт.

75

829-1420

NUT,M20, Cl 10

2шт.

76

800-1140

SNAP RING,M40, Ext

2шт.

77

156954A1

DOWEL

2шт.

78

338W060Z014B

LINCH PIN

4шт.

79

126R010SR

EYEBOLT

BOLT, EYE

2шт.

80

LA00036

SET SCREW,Hex

2шт.

81

160296A1

SET SCREW

2шт.

82

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

83

NSS

NOT SOLD SEPARAT

Rivet

2шт.

84

160160A1

VALVE SECTION

See Figure 08-91

1шт.

163

LZ006740

SEAL KIT

Incl. 63 - 73, Also Includes Figure 08-90, Ref. 188 - 190, Figure 08-91 Ref. 89, 90, 98 - 100, Figure 08-92, Ref. 138 - 150

1шт.

164

TNP0022

VALVE

Incl. 59, 60, 62

2шт.

165

TNP0023

VALVE

Incl. 59, 61, 62

2шт.

170

LJ01270

HYDRAULIC PUMP

See Figure 08-90

1шт.
