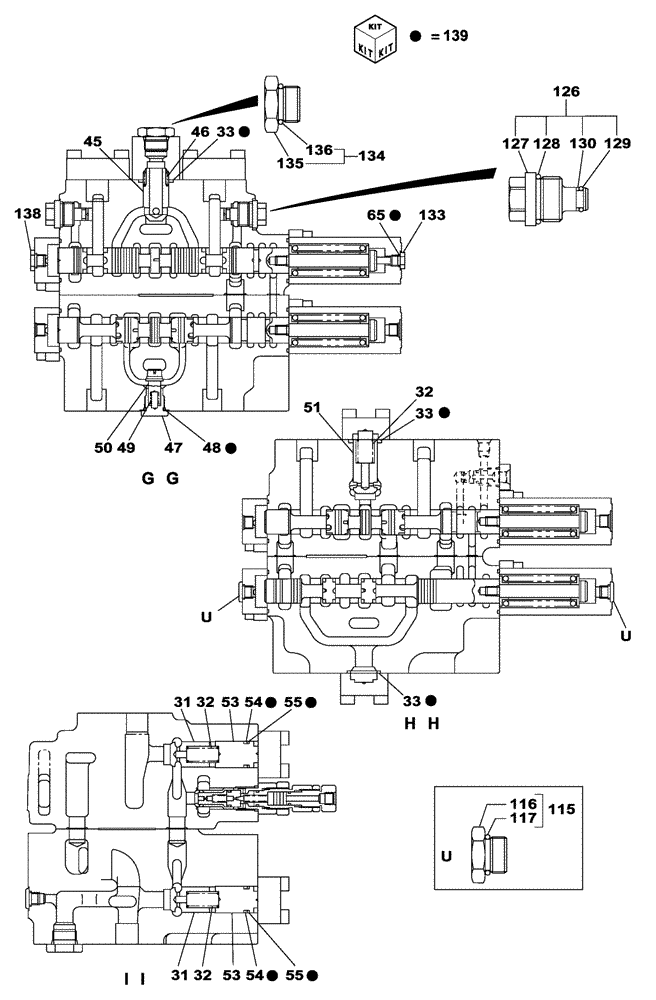

Запчасти Case CX330 (08-71) - CONTROL VALVE (08) - HYDRAULICS

KSJ3106

CONTROL VALVE

Includes All Parts On Figures 08-67 - 08-71; Replaces KSJ2766

1шт.

31

LJ00727

VALVE POPPET

2шт.

32

LG00341

SPRING

3шт.

33

154539A1

O-RING

3шт.

45

LJ00728

VALVE POPPET

1шт.

46

LG00342

SPRING

1шт.

47

155464A1

PLUG

1шт.

48

155222A1

O-RING

1шт.

49

156026A1

SPRING

1шт.

50

LJ00972

VALVE POPPET

1шт.

51

LJ00730

VALVE POPPET

1шт.

53

LH00251

SPACER

2шт.

54

154507A1

O-RING

2шт.

55

153987A1

BACK-UP RING

2шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

163972A1

PLUG

Incl. 116, 117

2шт.

116

LK00328

PLUG

1шт.

117

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

165839A1

PLUG

Incl. 127 - 130

2шт.

127

LK00327

PLUG

1шт.

128

155223A1

O-RING

1шт.

129

154454A1

O-RING

1шт.

130

165779A1

RING

1шт.

133

LK00321

PLUG

1шт.

134

LK00302

PLUG

Incl. 135, 136

1шт.

135

165836A1

PLUG

1шт.

136

154503A1

O-RING

1шт.

138

155447A1

PLUG

1шт.

139

LZ00629

SEAL KIT

Incl. 33, 48, 54, 55, 65; Also Includes Figure 08-67 Ref. 132, Figure 08-68 Ref. 7, 42, 43, 66, 67, Figure 08-69 Ref. 7, 22, 24, 27, 28, 42, 43, 63, Figure 08-70 Ref. 33

1шт.
