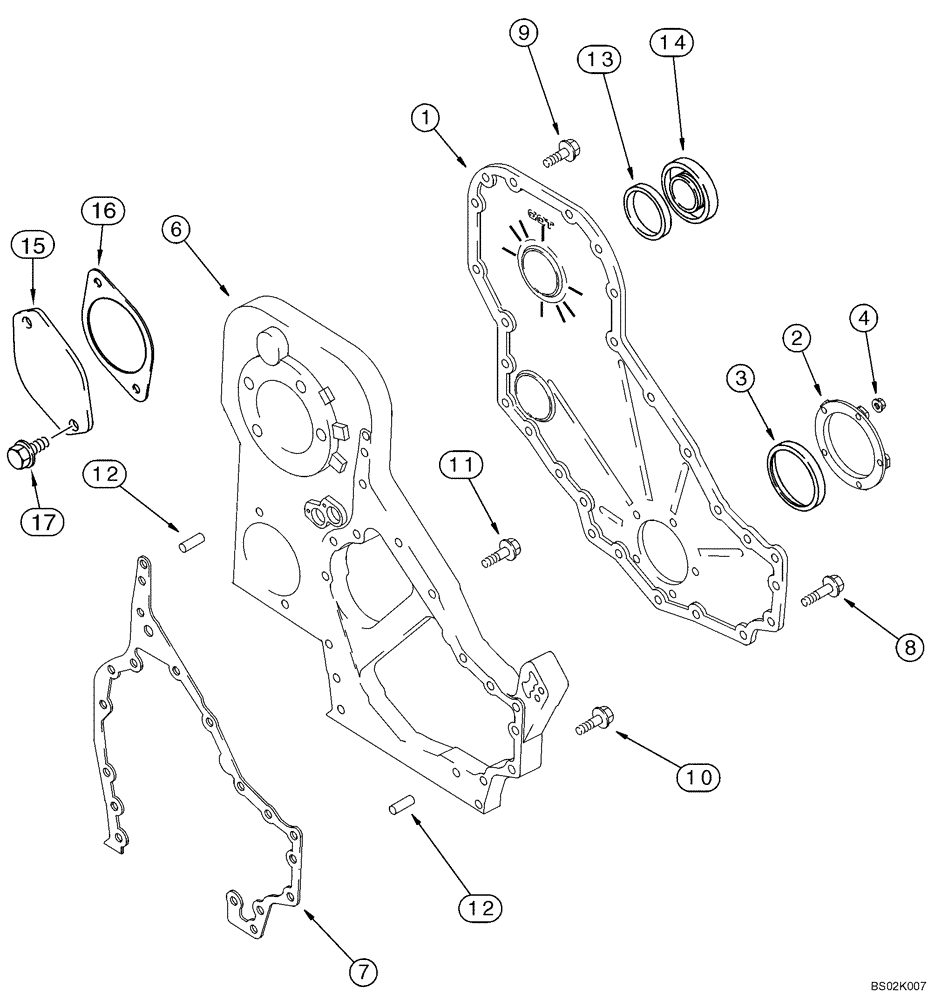

Запчасти Case CX330 (02-07) - FRONT GEAR COVER (02) - ENGINE

6TAA-8304 EMISSIONS CERTIFIED ENGINE

1шт.

1

J948045

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

Seal; Order A77790, See Figure 02 -02, REF 14

1шт.

4

J938077

LOCK NUT

M6

5шт.

5

ZPX82194

SPECIAL MAT. SEAL

Replaces J823494, 87307915; Not Illustrated

1шт.

6

J945853

HOUSING

1шт.

7

J944293

GASKET,1.01mm Thk

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

4шт.

12

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

14

J903463

PLUG,M63 x 5

1шт.

15

J914868

COVER

1шт.

16

J938655

GASKET,1.27mm Thk

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.
