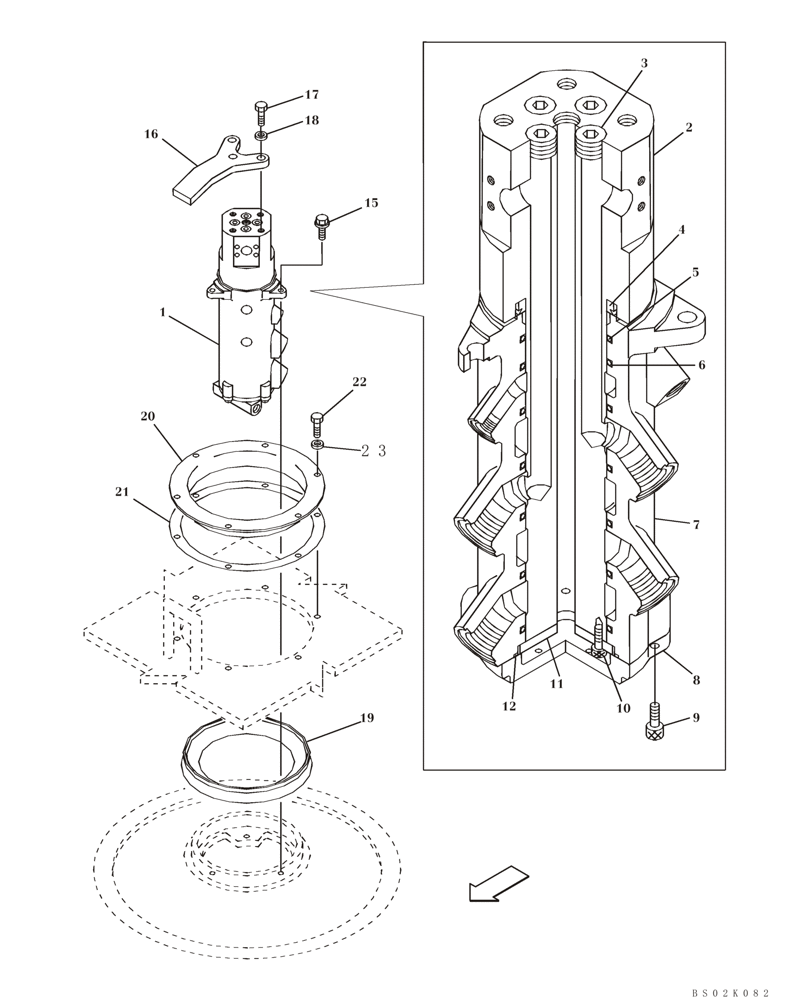

Запчасти Case CX330 (08-63) - HYDRAULICS - JOINT, SWIVEL CENTER (P.I.N DAC0733101 - DAC0733207) (08) - HYDRAULICS

1

KSA1305

HYDRAULIC SWIVEL

Incl. 2 - 12; Replaces KSA1136

1шт.

1

KSA1305R

REMAN-HYDRAULIC SWIV

CX330 CASE CRAWLER EXCAVATOR (NORTH AMERICA), SWIVEL CENTER (P.I.N DAC0733101 - DAC0733207)

1шт.

1

KSA1305C

CORE-HYDRAULIC SWIV

Return Number

1шт.

2

KSA1137

ROTOR

Incl. 3

1шт.

3

150829A1

PLUG

4шт.

4

KTA1092

SHAFT SEAL

1шт.

5

KHA10120

O-RING

Replaces 154712A1

1шт.

6

KTA1093

SEALING RING

SEALRING

6шт.

7

KTA1094

VALVE BODY

1шт.

8

KTA1095

COVER

1шт.

9

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

10

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

11

KTA1096

PLATE

1шт.

12

154761A1

O-RING,119.4mm ID x 3.1mm Width

1шт.

15

166352A1

BOLT

3шт.

16

KSA1140

SUPPORT

Lock

1шт.

17

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

3шт.

18

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

3шт.

19

151009A1

SEALING RING

1шт.

20

152635A1

RETAINER

1шт.

21

152596A1

RUBBER SEAL

1шт.

22

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

23

161498A1

SEALING WASHER

6шт.
