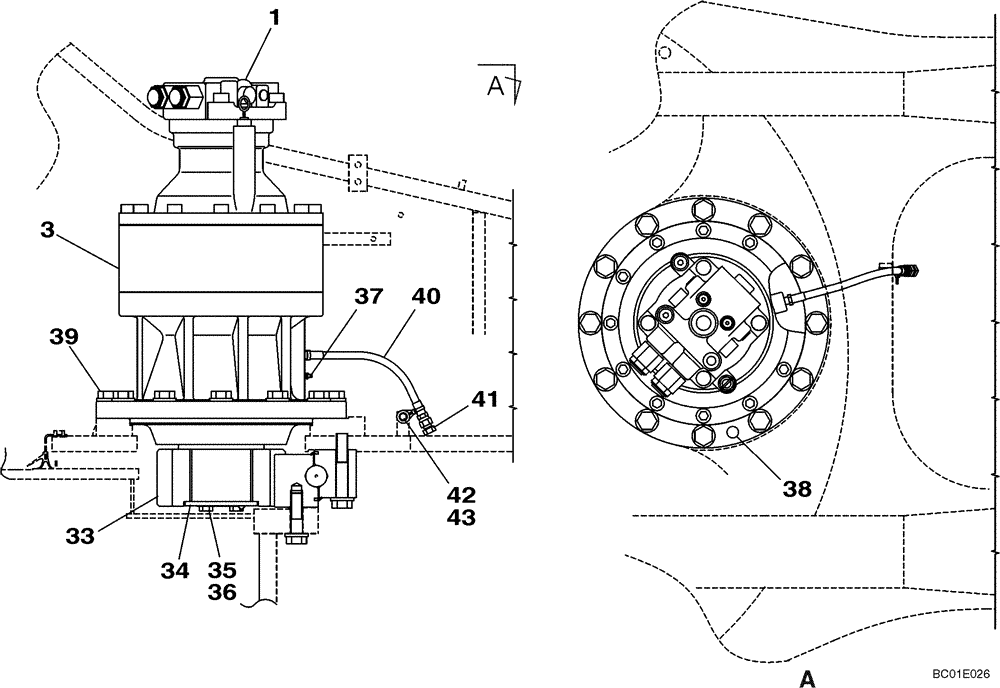

Запчасти Case CX330 (08-60) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

1

KSC0230

MOTOR, HYDRAULIC

Swing; See Figure 08-61

1шт.

1

KSC10170R

REMAN-HYD MOTOR

CX330 CASE CRAWLER EXCAVATOR (NORTH AMERICA), SWING MOTOR, Reman for New PN KSC0230

1шт.

1

KSC10170C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

KSC0235

REDUCER

Transmission; See Figure 08-62

1шт.

3

KSC10250R

REMAN-REDUCTION UNIT

CX330 CASE CRAWLER EXCAVATOR (NORTH AMERICA), Transmission, Reman for New PN KSC0235

1шт.

3

KSC10250C

CORE-REDUCTION UNIT

Return Number

1шт.

33

KSC0201

GEAR

Pinion

1шт.

34

150285A1

PLATE, LOCKING

1шт.

35

167069A1

WASHER

1шт.

36

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

37

153630A1

LUBE NIPPLE

Grease

1шт.

38

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

39

166477A1

BOLT,Sems, M24 x 90mm

12шт.

40

KTJ0315

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

1шт.

41

KHP0501

PLUG

1шт.

42

KHR2584

CLAMP

1шт.

43

KHJ1215

BOLT,Spcl

1шт.
