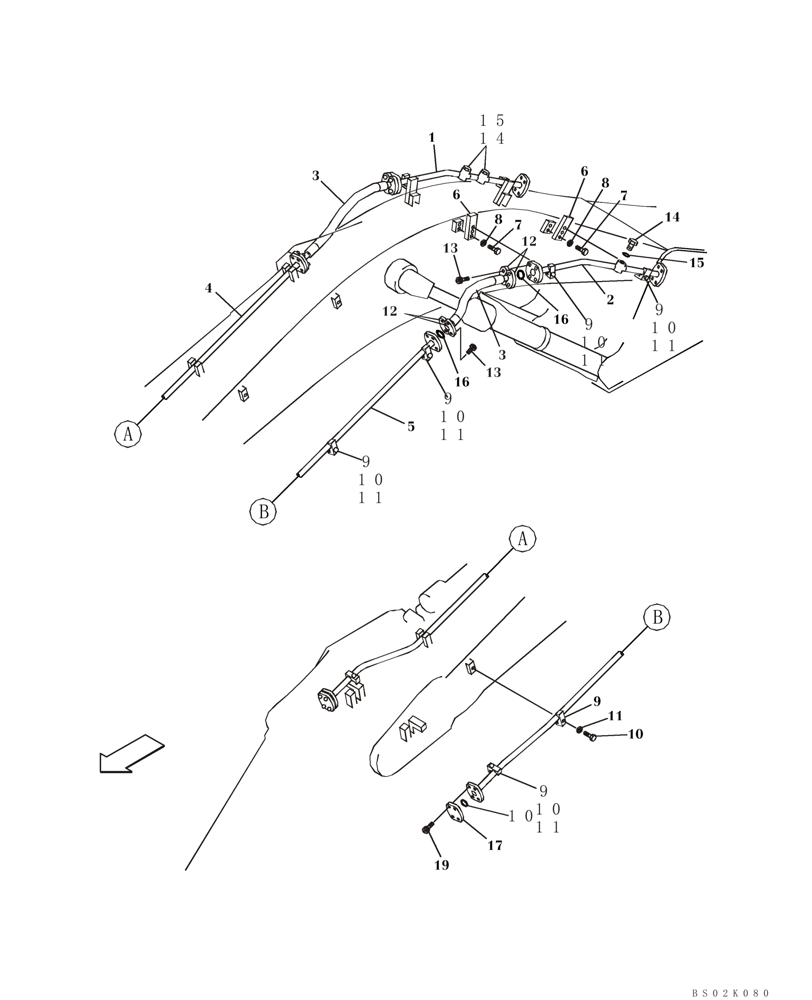

Запчасти Case CX330 (08-59) - HYDRAULICS, AUXILIARY - BOOM LINE (08) - HYDRAULICS

1

KSV1383

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KSV1384

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

3

162610A1

HOSE ASSY.

2шт.

4

KSV1385

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KSV1386

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KTV1210

SUPPORT

4шт.

7

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

8

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

8шт.

9

KTV1209

CLAMP

12шт.

10

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

12шт.

11

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

12шт.

12

150124A1

FLANGE

8шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

14

152924A1

PLUG

Incl. 15

3шт.

15

154503A1

O-RING

3шт.

16

164450A1

O-RING

4шт.

17

KUP0009

FLANGE

2шт.

18

164450A1

O-RING

2шт.

19

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.
