(08-58) - HYDRAULICS, AUXILIARY ATTACHMENT - TRIGGER ACTIVATED, 4,04 M (13 FT 3 IN) ARM

Запчасти Case CX330 (08-58) - HYDRAULICS, AUXILIARY ATTACHMENT - TRIGGER ACTIVATED, 4,04 M (13 FT 3 IN) ARM (08) - HYDRAULICS

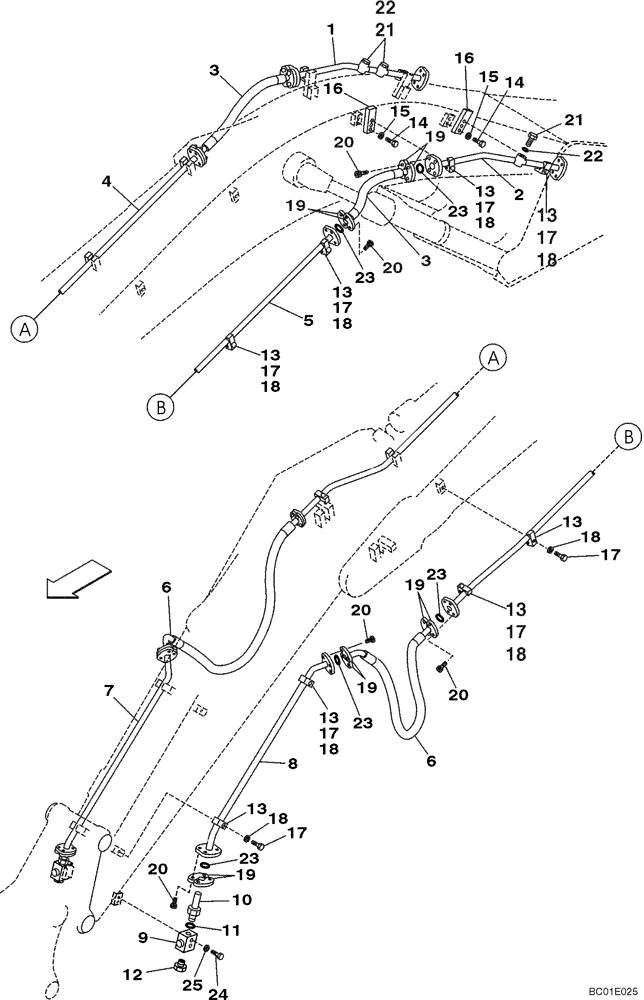

Схема запчастей Case CX330 - (08-58) - HYDRAULICS, AUXILIARY ATTACHMENT - TRIGGER ACTIVATED, 4,04 M (13 FT 3 IN) ARM (08) - HYDRAULICS
19
23
10
17
20
9
13
12
6
20
17
19
15
23
18
23
13
15
23
13
13
3
7
4
16
18
17
18
13
14
21
19
13
22
8
18
19
20
17
24
18
18
18
22
5
6
1
20
3
19
2
23
13
18
21
13
17
25
16
20
17
17
11
17
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV1383

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KSV1384

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

3

162610A1

HOSE ASSY.

2шт.

4

KSV1385

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KSV1386

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KSV1517

HYDRAULIC HOSE,31.80 mm ID x 2600.00 mm

2шт.

7

KSV1514

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

8

KSV1515

HYD TUBE

1шт.

9

KHV10700

VALVE SECTION

Stop; Replaces KHV0389

2шт.

10

KHV0451

FITTING

Incl. 11

2шт.

11

154559A1

O-RING

1шт.

12

162335A1

PLUG

2шт.

13

KTV1209

CLAMP

16шт.

14

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

15

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

8шт.

16

KTV1210

SUPPORT

4шт.

17

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

16шт.

18

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

16шт.

19

150124A1

FLANGE

Split

20шт.

20

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

40шт.

21

152924A1

PLUG

Incl. 22

3шт.

22

154503A1

O-RING

1шт.

23

164450A1

O-RING

10шт.

24

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

25

150811A1

WASHER

M12

4шт.
