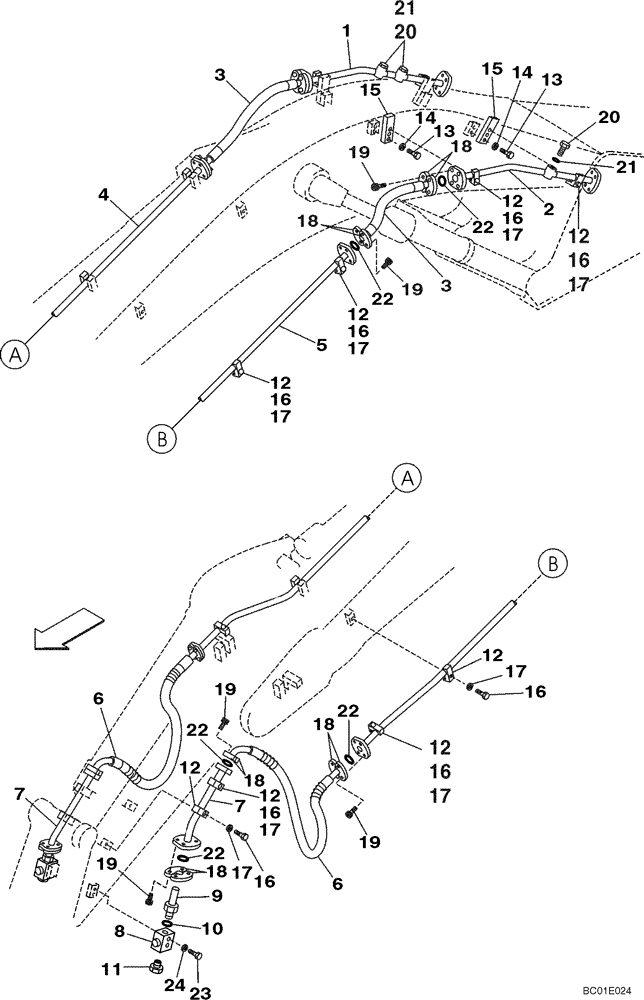

Запчасти Case CX330 (08-57) - HYDRAULICS, AUXILIARY ATTACHMENT - TRIGGER ACTIVATED, 2,63 M (8 FT 8 IN) ARM (08) - HYDRAULICS

1

KSV1383

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KSV1384

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

3

162610A1

HOSE ASSY.

2шт.

4

KSV1385

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KSV1386

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KSV1371

HYDRAULIC HOSE,31.80 mm ID x 2250.00 mm

2шт.

7

KSV1434

HYD TUBE,34.7 mm ID x 42.7 mm OD

2шт.

8

KHV10700

VALVE SECTION

Stop; Replaces KHV0389

2шт.

9

KHV0451

FITTING

Incl. 10

2шт.

10

154559A1

O-RING

1шт.

11

162335A1

PLUG

2шт.

12

KTV1209

CLAMP

16шт.

13

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

8шт.

15

KTV1210

SUPPORT

4шт.

16

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

16шт.

17

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

16шт.

18

150124A1

FLANGE

Split

20шт.

19

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

40шт.

20

152924A1

PLUG

Incl. 21

3шт.

21

154503A1

O-RING

1шт.

22

164450A1

O-RING

10шт.

23

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

24

150811A1

WASHER

M12

4шт.
