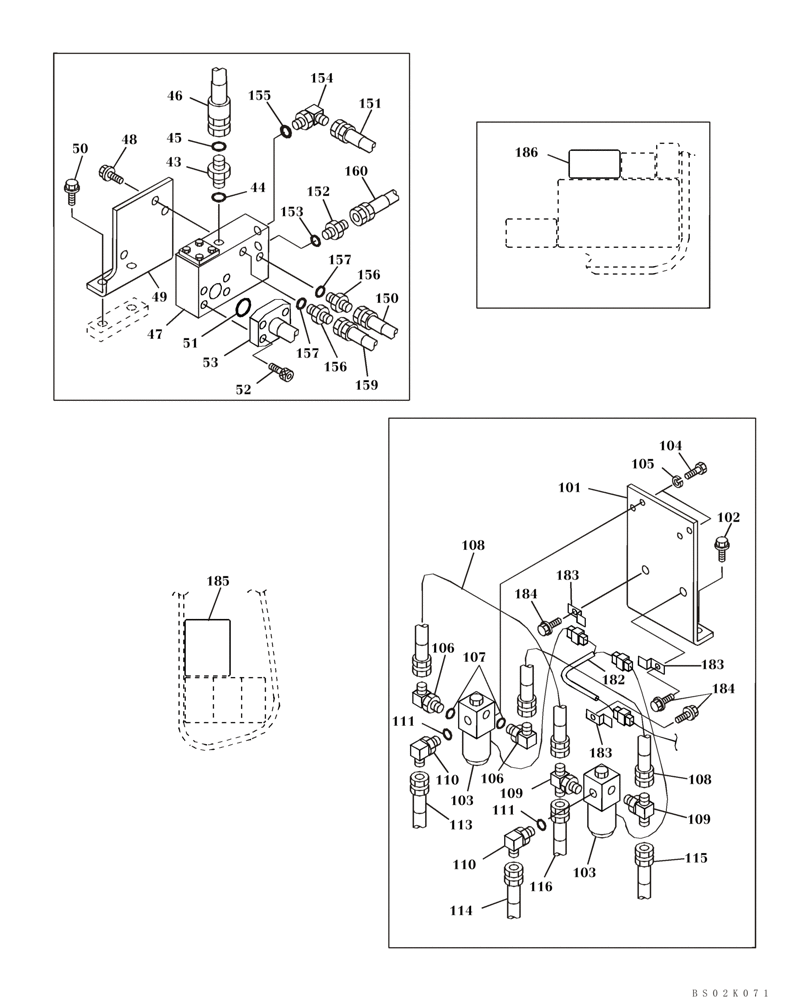

Запчасти Case CX330 (08-55) - HYDRAULICS, AUXILIARY - MULT-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

43

KHJ1348

ADAPTER

Incl. 44

1шт.

44

154503A1

O-RING

1шт.

45

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

46

KSJ2803

HYDRAULIC HOSE,19.05 mm ID x 600.00 mm

See Figure 08-53

1шт.

47

KHJ1340

VALVE

Holding; See Figure(s) 08-53, 08-78

1шт.

48

166052A1

BOLT

3шт.

49

KSJ2804

BRACKET

1шт.

50

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

51

154528A1

O-RING

1шт.

52

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

53

KSJ2805

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

101

KSJ2835

BRACKET

1шт.

102

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

103

162538A1

VALVE

Solenoid; See Figure 08-64

2шт.

104

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

105

892-11006

LOCK WASHER,M6

4шт.

106

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 107

2шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

168780A1

HYDRAULIC HOSE,6.30 mm ID x 350.00 mm

2шт.

109

167321A1

TEE

2шт.

110

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 111

2шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

KRJ4748

PLASTIC-RUBBER TUBE

See Figure 08-54

1шт.

114

KAJ3243

HYDRAULIC HOSE

See Figure 08-54

1шт.

115

151888A1

HOSE,63.00 mm ID x 1350.00 mm

See Figure 08-53

1шт.

116

161494A1

HOSE ASSY.

See Figure 08-54

1шт.

150

159019A1

HOSE ASSY.

See Figure 08-53

1шт.

151

159019A1

HOSE ASSY.

See Figure 08-53

1шт.

152

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 153

1шт.

153

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

154

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 155

1шт.

155

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

156

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 157

2шт.

157

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

159

161648A1

HOSE ASSY.

See Figure 08-53

1шт.

160

152514A1

HOSE,63mm ID x 1000mm L

See Figure 08-53

1шт.

182

KHR3870

WIRE HARNESS

1шт.

183

158962A1

CLIP

3шт.

184

167518A1

BOLT

3шт.

185

KSP0857

DECAL

1шт.

186

KHP1755

DECAL

1шт.
