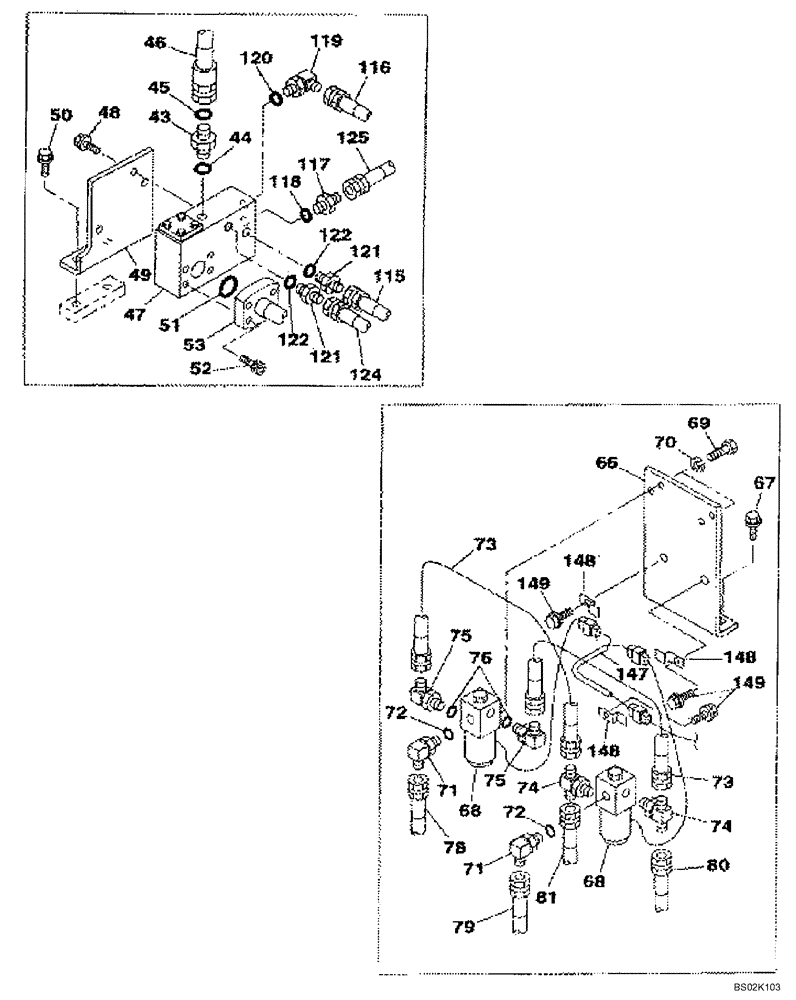

Запчасти Case CX330 (08-51) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
43
KHJ1348
ADAPTER
Incl. 44
1шт.
45
KHJ1360
O-RING,0.07" Thk x 0.739" ID
1шт.
46
KSJ2803
HYDRAULIC HOSE,19.05 mm ID x 600.00 mm
See Figure 08-49
1шт.
47
KHJ1340
VALVE
Holding; See Figure(s) 08-49, 08-78
1шт.
48
166052A1
BOLT
3шт.
49
KSJ2804
BRACKET
1шт.
50
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
51
154528A1
O-RING
1шт.
52
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
4шт.
53
KSJ2805
HYD TUBE,20.8 mm ID x 27.2 mm OD
1шт.
66
KSJ2835
BRACKET
1шт.
67
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
68
162538A1
VALVE
Solenoid; See Figure(s) 08-49, 08-64
2шт.
69
627-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd
4шт.
70
892-11006
LOCK WASHER,M6
4шт.
71
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 72
2шт.
72
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
73
168780A1
HYDRAULIC HOSE,6.30 mm ID x 350.00 mm
2шт.
74
167321A1
TEE
2шт.
75
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 76
2шт.
76
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
78
KRJ4748
PLASTIC-RUBBER TUBE
See Figure 08-50
1шт.
79
KAJ3243
HYDRAULIC HOSE
See Figure 08-50
1шт.
80
151888A1
HOSE,63.00 mm ID x 1350.00 mm
See Figure 08-49
1шт.
81
161494A1
HOSE ASSY.
See Figure 08-50
1шт.
115
159019A1
HOSE ASSY.
See Figure 08-49
1шт.
116
159019A1
HOSE ASSY.
See Figure 08-49
1шт.
117
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 118
1шт.
118
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
119
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 120
1шт.
120
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
121
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 122
2шт.
122
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
124
161648A1
HOSE ASSY.
See Figure 08-49
1шт.
125
152514A1
HOSE,63mm ID x 1000mm L
See Figure 08-49
1шт.
147
KHR3870
WIRE HARNESS
1шт.
148
158962A1
CLIP
3шт.
149
167518A1
BOLT
3шт.
Выбрано товаров: 39
