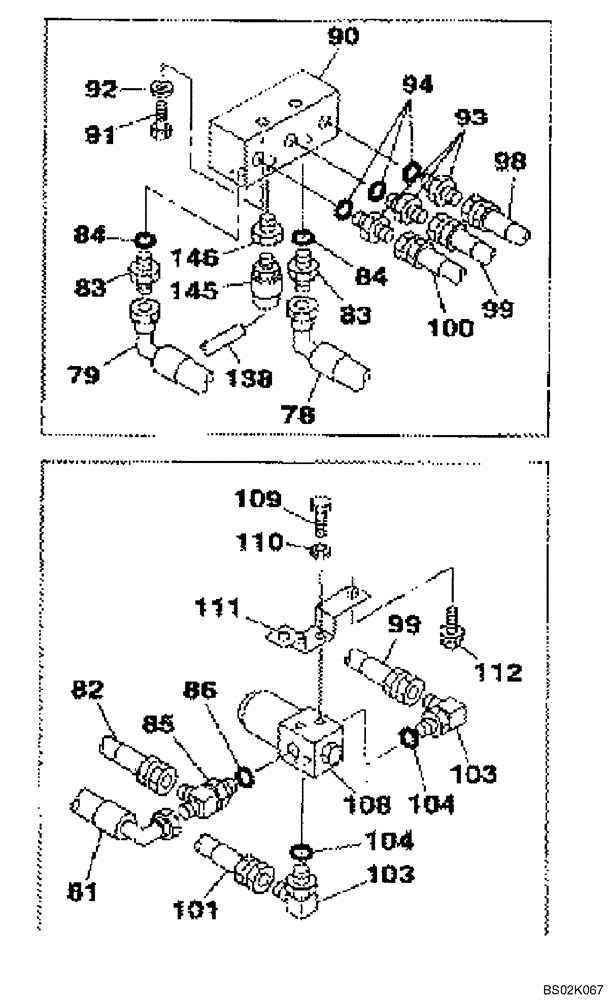

Запчасти Case CX330 (08-50) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

78

KRJ4748

PLASTIC-RUBBER TUBE

See Figure 08-51

1шт.

79

KAJ3243

HYDRAULIC HOSE

See Figure 08-51

1шт.

81

161494A1

HOSE ASSY.

See Figure 08-51

1шт.

82

159235A1

HYDRAULIC HOSE

See Figure 08-49, 850 mm (KRJ3572)

1шт.

83

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 84

2шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

159497A1

TEE

Incl. 86

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

KHJ17100

VALVE PRESSURE RELIE

Shuttle; See Figure 08-49, Replaces KHJ1655

1шт.

91

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

92

153081A1

WASHER

2шт.

93

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 94

3шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

KHJ1772

HOSE

See Figure 08-49

1шт.

99

161272A1

HOSE

1шт.

100

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-49

1шт.

101

152581A1

HOSE,6.3mm ID x 1900mm L

See Figure 08-49

1шт.

103

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 104

2шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

162538A1

VALVE

See Figure 08-49, 08-64

1шт.

109

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

110

892-11006

LOCK WASHER,M6

2шт.

111

KRJ5751

BRACKET

1шт.

112

166346A1

BOLT,Sems, M10

2шт.

138

KHR3351

HARNESS

1шт.

145

KHR10800

PRESSURE SWITCH

Replaces 159899A1

1шт.

146

KHJ11460

ADAPTER

Replaces 152191A1

1шт.
