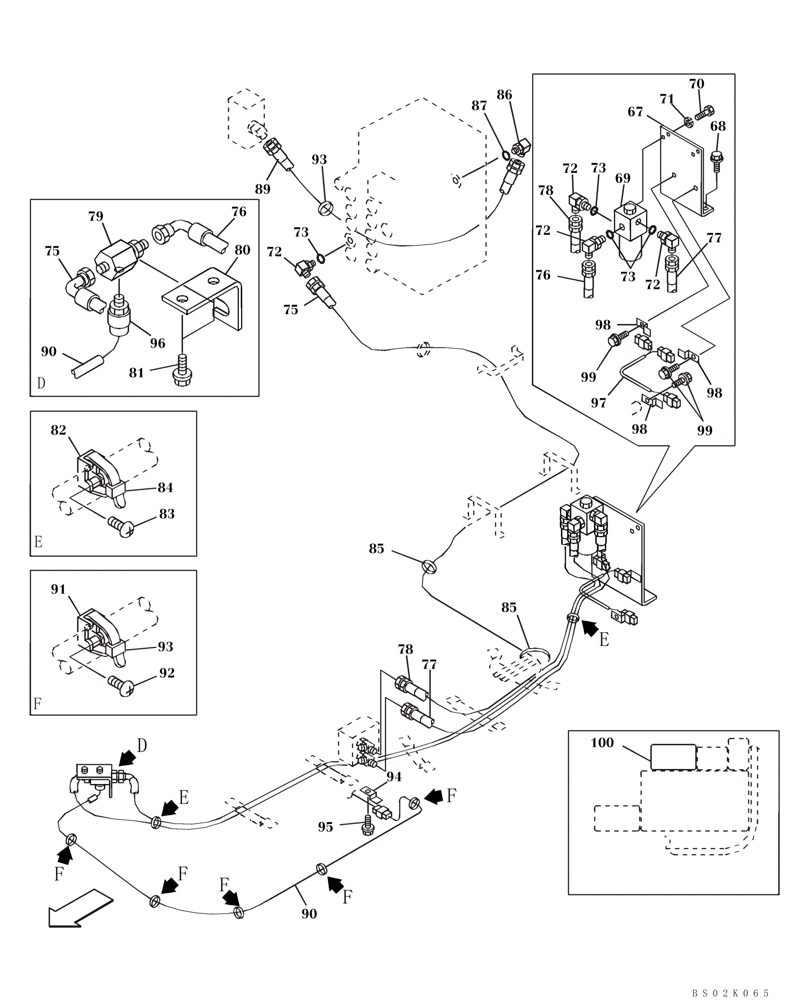

Запчасти Case CX330 (08-47) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

67

KSJ2835

BRACKET

1шт.

68

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

69

162538A1

VALVE

Solenoid; See Figure 08-64

1шт.

70

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

71

892-11006

LOCK WASHER,M6

2шт.

72

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 73

4шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

KRJ4792

HOSE

1шт.

76

161648A1

HOSE ASSY.

1шт.

77

153398A1

HOSE ASSY.

2шт.

79

KHJ11470

ADAPTER

Replaces KHJ0652

1шт.

78

KHJ2543

PLASTIC-RUBBER TUBE

1шт.

80

KHJ0652

ADAPTER

1шт.

81

166345A1

BOLT

2шт.

82

150860A1

COLLAR

2шт.

83

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

84

150496A1

MOUNTING CLIP

2шт.

85

150071A1

MOUNTING CLIP

2шт.

86

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

158100A1

HOSE

Replaces 152281A1

1шт.

90

KHR3350

HARNESS

1шт.

91

150860A1

COLLAR

5шт.

92

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

93

150496A1

MOUNTING CLIP

5шт.

94

165405A1

CLIP

1шт.

95

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

96

KHR10800

PRESSURE SWITCH

Replaces 159899A1

1шт.

97

KHR3870

WIRE HARNESS

1шт.

98

158962A1

CLIP

3шт.

99

167518A1

BOLT

3шт.

100

KHP1755

DECAL

1шт.

101

150067A1

MOUNTING CLIP

Not Illustrated

1шт.
