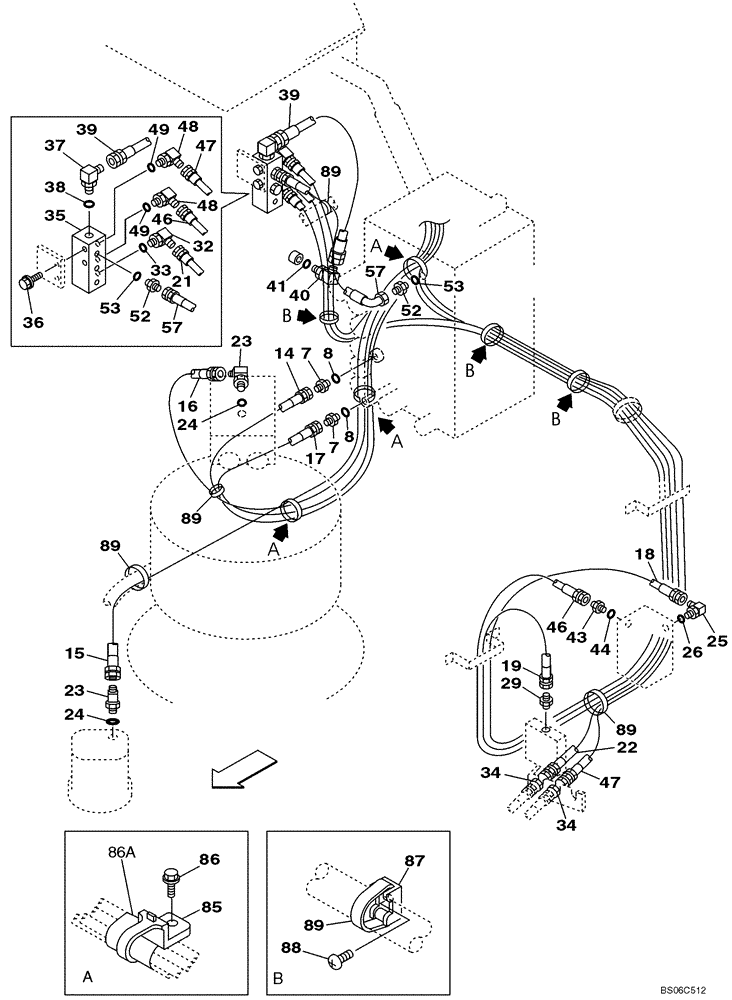

Запчасти Case CX330 (08-45) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 8

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

161293A1

HOSE

See Figure 08-44

1шт.

15

162650A1

HOSE,3500.00 mm

See Figure 08-43

1шт.

16

162649A1

HOSE,3100.00 mm

See Figure 08-43

1шт.

17

164232A1

HOSE ASSY.

See Figure 08-43

1шт.

18

KHJ1930

HOSE

See Figure 08-43

1шт.

19

KTJ1786

HOSE

See Figure 08-43

1шт.

21

164115A1

HYDRAULIC HOSE

See Figure 08-43

1шт.

22

162531A1

HOSE

See Figure 08-43

1шт.

23

150933A1

ELBOW

Incl. 24

2шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KHJ1291

ORIFICE

1шт.

32

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 33

1шт.

33

154475A1

O-RING

1шт.

34

162826A1

ADAPTER

2шт.

35

KNJ2574

MANIFOLD

1шт.

36

166350A1

BOLT

2шт.

37

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 38

1шт.

38

154487A1

O-RING

1шт.

39

KHJ1767

HYDRAULIC HOSE

1шт.

40

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 41

1шт.

41

154487A1

O-RING

1шт.

43

152747A1

ADAPTER

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

159063A1

HOSE

1шт.

47

157971A1

HOSE

1шт.

48

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 49

2шт.

49

154475A1

O-RING

1шт.

52

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 53

2шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ2732

HYDRAULIC HOSE,6.30 mm ID x 600.00 mm

Replaces 159013A1

1шт.

85

KHR2581

CLAMP

3шт.

86

KHJ1215

BOLT,Spcl

3шт.

86a

KHJ2622

RUBBER PAD

4шт.

87

150860A1

COLLAR

3шт.

88

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

89

150071A1

MOUNTING CLIP

1шт.
